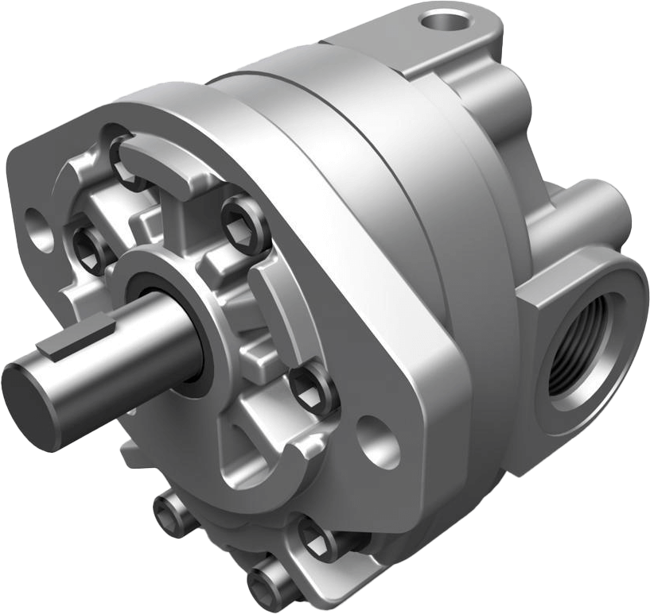

Aluminum Pumps - H Series

Brand: Parker Hannifin
Add Product to My Catalog

Parker’s Aluminum Pump H Series fixed displacement gear pump offers high performance and high power density due to its aluminum construction.

Parker’s Aluminum Pump H Series fixed displacement gear pump offers high performance and high power density dues to its aluminum construction, making it an ideal selection for the Aerial, Agriculture, Construction, Forestry, Material Handling, and Turf Equipment markets.

It is available as a standard pump, a pump with a primary circuit relief valve, or a pump with a priority flow divider valve.
Features
  • Three-piece construction for distribution flexibility
  • Aluminum pumping sections for light weight
  • Journal bushings for long life
  • Pressure balanced thrust blocks for high efficiency
  • Multiple sections available

Specifications

Brand

Body Material

  • Aluminum

Case Drain Option

  • No

Charge Pump Option

  • No

Circuit Type

  • Open

Configuration

  • Single

Control Method

  • Relief

Energy Recovery Capable

  • No

Filtration Option

  • No

Fluid Type

  • Standard Hydraulic Fluid / Phosphate Ester / Water Glycol

Maximum Displacement (cm3/rev)

  • 36.5

Maximum Displacement (inch3/rev)

  • 2.227

Maximum Flow (gpm)

  • N/A

Maximum Flow (Lpm)

  • N/A

Maximum Fluid Temperature (°C)

  • 80° C

Maximum Fluid Temperature (°F)

  • 176° F

Maximum Noise Level (dBA)

  • N/A

Maximum Operating Pressure (bar)

  • 172

Maximum Operating Pressure (psi)

  • 2500

Maximum Radial Shaft Load (kg)

  • Consult Parker

Maximum Radial Shaft Load (Lbs)

  • Consult Parker

Maximum Speed (rpm)

  • 4000

Maximum Viscosity (SUS)

  • 7500

Maximum Weight (kg)

  • 3.2

Maximum Weight (Lbs)

  • 7

Media

  • N/A

Minimum Fluid Temperature (°C)

  • -15° C

Minimum Fluid Temperature (°F)

  • 5° F

Minimum Viscosity (SUS)

  • 50

Mounting Option

  • SAE, ISO

Port Connection

  • SAE, NPT

Port Connection Type

  • Straight Threaded

Porting Location

  • Side Ports / Rear Ports

Pump Technology

  • Gear

Pump Type

  • Fixed

Rotation

  • Clockwise / Counter Clockwise

Sensor Type

  • N/A

Shaft Type

  • SAE, ISO

Thru-Drive Capability

  • No

  • Power steering pumps – priority valves available
  • Brake pump
  • Hydraulic Power Unit
  • Filter Cart Pump
  • Transfer pump
  • Lube pump
