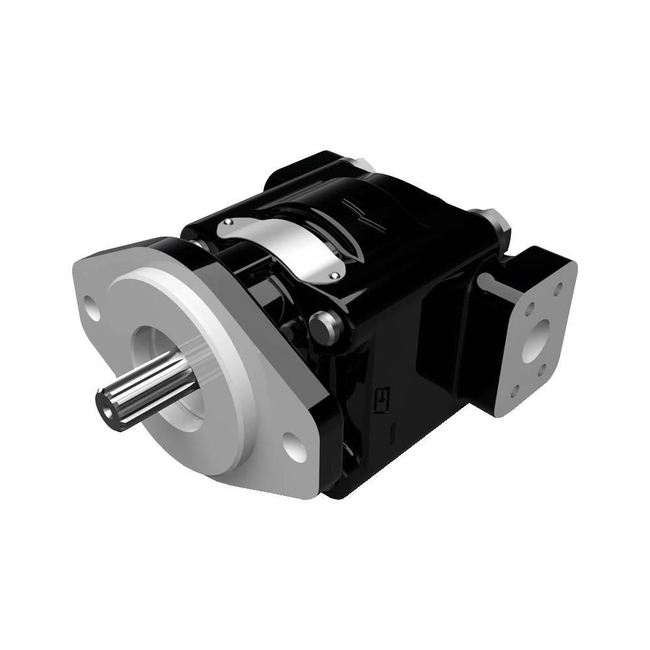

Cast Iron Motors - PGM330 Series

Brand: Parker Hannifin

Parker’s 330 series fixed displacement gear motors offer high pressure durability due to their cast iron construction, making them ideal for high duty cycle mobile applications for the Construction, Forestry, and Oil & Gas markets.

They are available as a standard motor.
Features
  • Three-piece cast iron construction for distribution flexibility
  • Cast Iron construction for durability
  • Balanced Thrust Plates minimize friction and leakage
  • Journal bearings for long life
  • Multiple sections available

Specifications

Compatible Hydraulic Fluid

  • Fire Resistant Fluids: Water-oil Emulsions 60/40 - HFB, Water-Glycol - HFC & Phosphate-esters - HFD, Mineral Oil

Continuous Outlet Pressure (bar)

  • Up to 241 (3500 psi)

Maximum Inlet Pressure (psig)

  • 15

Maximum Vacuum Continuous

  • 13 cm (5”) Hg at Operating Temperature

Motor Displacement (cc/rev)

  • 16.1 to 64.6 (0.99 to 3.94 Cir)

Mounting Style

  • SAE 2-Bolt or 4-Bolt

Porting

  • BSPP, Metric Split Flange, SAE Straight Thread or Split Flange

Product Type

  • Motor, Cast Iron Bushing, External Gear

Rotation

  • Bi-Direction

Shaft Seal Material

  • NBR, FPM [FKM]

Shaft Type

  • SAE Splined or Keyed

Speed Range (rpm)

  • 400 to 3000

Temperature Range (°F)

  • 0° to 180° w/ Standard Seals, 0° to 150° w/ FPM Seals

Weight

  • 36 lbs with 1” Gear (Add 1 lbs Each Additional 1/4” of Gear. Subtract 10 % from Total.)

  • Tire Trucks
  • Salt and sand spreaders
  • Aerial Lift
  • Low boy trailers
  • Live (Moving) Floor Trailers
  • Roll Off Trailers
