Model XLA OEM Parallelogram

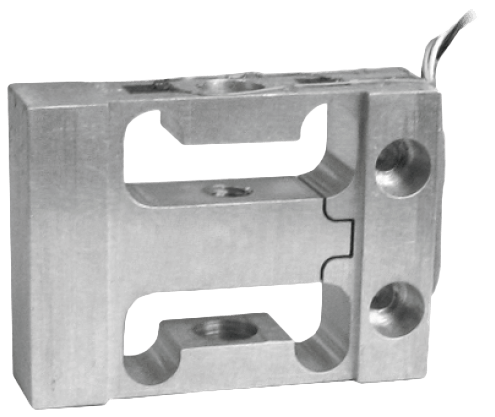

Brand: TecsisThe unique double-cantilever design of the model XLA parallelogram load cell provides a low profile, precision unit with a high tolerance for off-center loading.
The XLA comes in one size covering ranges from 2.2 to 500 lbs. and is available in aluminum or stainless steel.
This configuration is ideal for process applications requiring weight control and monitoring such as in-line food processing, process control, or batching systems.
Features- Built-In overload protection
- Designed for OEM applications
- Aluminum or stainless steel construction
Specifications
Brand
Approvals & Certifications
- Calibration
- ISO 9001: 2015 Certified
Compensated Temperature
- 15° to 71° C (60° to 160° F)
Electrical Connectors
- 4-Lead Wires
Electrical Protection
- Overload Protection
Enclosure, Body Material
- 100 lbs & Below: Aluminum
- 200 lbs & above: 630 Stainless Steel (17-4 PH)
Excitation Voltage
- 10 Vac/dc
- 18 V, Max.
Hysteresis
- 100 lbs & Below: ± 0.02 % of Full Scale Output
- 200 lbs & above: ± 0.06 % of Full Scale Output
Linearity
- 100 lbs & Below: ± 0.02 % of Full Scale Output
- 200 lbs & above: ± 0.06 % of Full Scale Output
Measuring Range
- 0 to 500 lbs
Operating Temperature
- -50° to 93° C (-60° to 200° F)
Output
- 2 mV/V Nominal
Repeatability
- ± 0.02 % of Full Scale Output
Resistance
- Bridge Resistance: 1,000 ohms
Span & Zero Effect
- Span: ± 0.005 % of Reading/°F
- Zero Effect: ± 0.005 % of Full Scale Output/°F
UNF/UNC Connection
- 1/4”-28 UNF Female-2B
- 10”-32 UNF Female-2B
Zero Balance
- ± 3 % of Full Scale Output
- Batching System
- In-Line Food Processing
- OEM Applications
- Process Control
