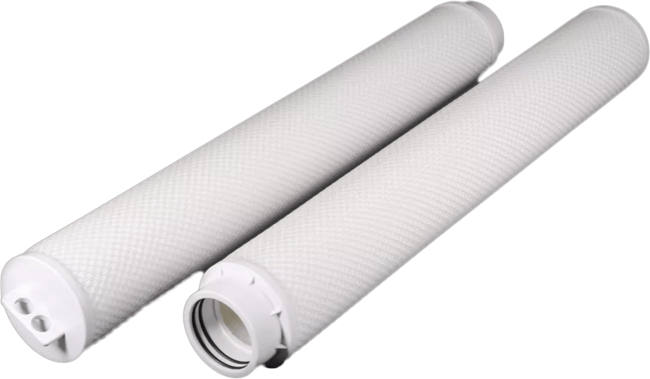

NHF High Flow Series Filter Cartridge

Brand: Filtrafine Corporation

NHF series filter cartridge's high surface area and large diameter provides higher flower rate, service life, dirt holding capacity and lower maintenance/disposal cost.

Its center core can resist higher differential pressure, and its double o-rings provide better sealing effect.

In addition, it provides optional polypropylene and micro glass fiber media, which can be applied to wide chemical compatibility.

Specifications

Filter Media

  • Polypropylene
  • Glass Fiber

Hardware

  • Polypropylene

Support Material

  • Polypropylene (for PP media)
  • Polyester (for glass fiber media)

O-rings

  • EPDM(Standard)
  • Buna-N
  • Silicone
  • Viton

Maximum Differential Pressure

  • NHF: 180° F (82° C)
  • NHFG: 220° F (105° C)

Recommended Change Out Differential Pressure

  • 35 psid (2.4 bar)

Certifications

  • RoHS Certified
  • FDA Certified
  • Halal Certificated

Documentation
