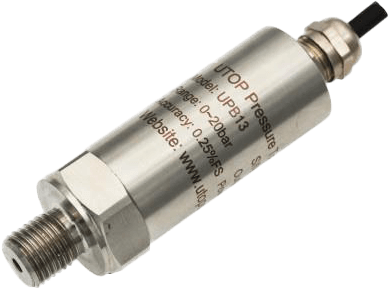

Pressure Transmitter with PG7 Connector

Brand: Xi'an UTOP Measurement Instrument Co, Ltd

UPB13 pressure transmitter with PG7 connector uses UPX19 piezo-resistive silicon sensor as sensing element.

It adopts the latest DSP digital signal conditioning algorithm circuit, the circuit features with high anti-jamming & anti-impact performance, also with good non-linearity correction for sensors, this makes UPB13 have excellent linearity characteristics.

With the mass production of the housing and the circuit, the production cost of UPB13 pressure transmitter with PG7 connector is decreased much. It is a good cost-effective product.
Features
  • Wide measuring pressure range: -1...0~0.1...1000 bar
  • Strong anti-jamming
  • High cost performance, highly cost-effective
  • Full digital circuit, good performance

Specifications

Pressure Ranges

  • -1...0 ~ 0.1...1000 bar

Overload Pressure

  • 150 % Full Scale

Output Signal

  • 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V

Accuracy

  • 0.25 % Full Scale, 0.5 % Full Scale

Supply Voltage

  • 9 ~ 36 Vdc

Compensated Temperature Range

  • -10° ~ 70° C

Process Connection

  • G1/2” or others

Electrical Connection

  • Hirschmann Connector or others

Material of Pressure Membrane

  • 316L Stainless Steel

Material of Wetted Part and Housing

  • 304 Stainless Steel

  • UPB13 Pressure Transmitter with PG7 Connector is widely used for Pressure Measurement and Control of Petroleum, Chemical Industry, Metallurgy, Power Station and Hydrology, etc.
