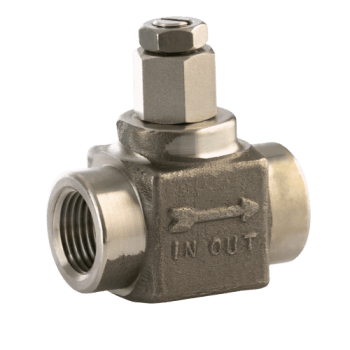

Pressure Limiting Valve

Brand: Chemiquip Products Co Inc
Add Product to My Catalog

The adjustable automatic action Pressure Limiting Valve - Overpressure Protector Model 255, 2550, and 71620, is for use with liquid and gases to protect systems from over range at operating pressure up to 15,000 psi.

The valve automatically shuts off pressure to the gauge if the pressure rises above the adjustable pre-set pressure, and automatically restores the instrument on-line when pressure falls below the pre-set value.
Features
  • Achieves Pressure Gauge Protection
  • Automatic Positive Protection
  • Accurate Repeatable Performance
  • Available in 4 Set Ranges, the Shut-off Pressure is Adjustable from 10 to 3,000 psi
  • Chemiquip Snubber Assures Positive, Repeatable Performance of Valve and Gauge by Protecting Against Surges, Pulsations and Entrained Solids Inclusions
  • Swift, Simple External Adjustment
  • Entire Unit Length 3”: 255 or 4”: 2550 & 71620
  • Outfitted with ¼” NPT 255, ½” NPT 2550 or 716-20 UNF 71620 Male or Female Inlet and Female Outlet Ports
  • Compact and Installs in Line Easily
  • Each Valve is Tested Before Shipping

View_Details

Specifications

Brand

Body

  • 1/4” NPT Female Stainless Steel 300 Series
  • 1/4” NPT Female 316 Stainless Steel - Meets NACE MR-0175
  • 1/4” NPT Female Brass
  • 1/4” NPT Female Monel (Special)
  • 1/2” NPT Female 316 Stainless Steel - Meets NACE MR-0175
  • 1/2” NPT Female Monel (Special)
  • 7/16-20 UNF Female
  • Add MxF for Male x Female Valve (255S-MxF)

Style

  • 10-150 psi
  • 150-500 psi
  • 500-1000 psi
  • 1000-3000 psi

Seal / Temperature Range

  • Viton 0° F to +400° F
  • Buna -20° F 𝑡𝑜 + 250° F
  • EPDM -70° F to +250° F
  • (Special) Other Seals

Snubber

  • Highly Viscosity Fluids (over 500 S.S.U.)
  • Oil (225 S.S.U. to 500 S.S.U.)
  • Water and Light Oils (30 to 225 S.S.U.)
  • Vapor and Low Viscosity Fluids (under 30 S.S.U.)
  • Air or Other Gases
  • Pulsating Gas
  • Extreme Gas Pulsation
  • No Snubber
