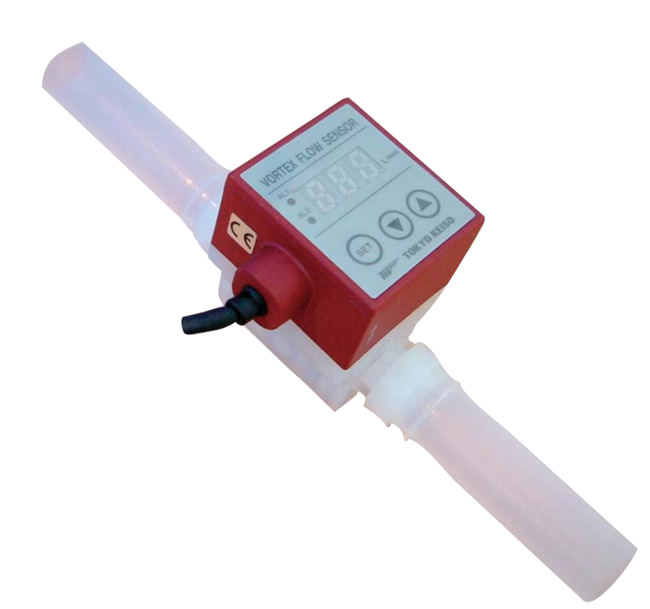

VF-3000 Vortex Flow Sensor
Brand: Tokyo Keiso Co, Ltd
VF-3000 is a cost effective Karman Vortex Flow Sensor suitable for Ultra-pure water etc.
The measuring principle is the reliable Karman vortex which is free from moving part for flow detection.
All functions and features of VF-3000 are maintained, two new scale ranges are added.
Features- 5 different scale ranges
- Simple and cost effective
- New PFA construction
- O-ring free sealing system (Except VF-30□2 and VF-30□3)
- No maintenance cost
- Low pressure loss
- CE marking
Specifications
Brand
Approvals & Certifications
- CE
- EMC
Enclosure, Body Material
- Cover: Poly-Butylene Treohthalate (PBT)
Environmental Protection
- IP64
Flow Rate
- 0.3 to 150 L/minute (0.08 to 40 gpm)
Materials of Construction
- Cable Sheath, Fitting: PVC
O-Ring Material
- Perfluoroelastomer - FFKM
Process Connection Material
- Fitting, Sensor, Tube: PFA
Tube Connection
- 1" Tube
- 3/4" Tube
- 3/8" Tube
