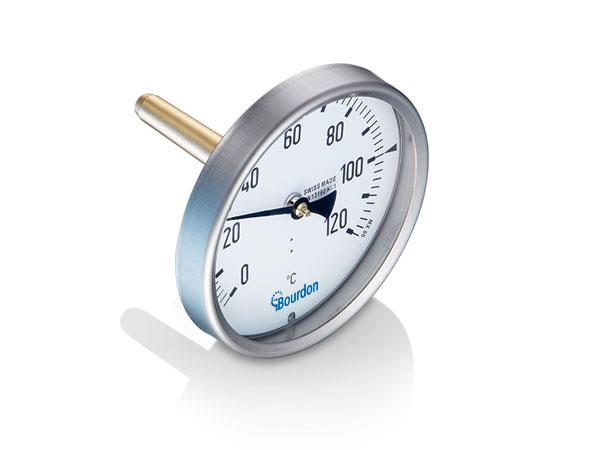

TBX160 Bi-Metal Thermometer
Brand: Bourdon
Features
- Conical immersion tube
- Class 1 according to EN 13190
- Immersion tube brass
- Installed length 62 mm
Specifications
Brand
Accuracy According to EN 13190
- Class 1
Bezel Ring Material
- Stainless Steel 1.4301, AISI 304
Case Material
- Stainless Steel 1.4301, AISI 304
Dial
- White, Aluminum
Immersion Tube Material
- Brass
IP Protection Rating
- IP50
Minimum Immersion Length
- LE ≥ 36 mm
Nominal Size
- 160 mm
Pointer
- Black, Aluminum
Temperature Range
- -20° to +250° C
Thermometer
- 430 G Center Back
Window Material
- Instrument Glass
- Water & Waste water
- Energy
- Machinery
