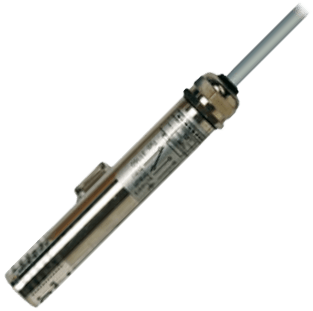

Type 31130-NN Standard Magnetic Switch Series Magnetic Level Indicator
Brand: Trimod BestaThe magnetic switch is mounted outside of the float chamber opposite to the indication rail. The switching logic can be reversed by inverting the switch module with cable-exit upwards or by installing the switch module adjacent to the indication rail where technically authorised.
The magnet inside the float activates the reed switch, when the liquid in the float chamber reaches that level.
Specifications
Brand
Enclosure, Body Material
- 316 Stainless Steel
- 316L Stainless Steel
Environmental Protection
- IP68
Media Temperature
- -50° to 150° C
Ambient Temperature
- -20° to 80° C
Contact Rating
- Maximum 250 V, 1.3 A, 80 VA, 80 W
