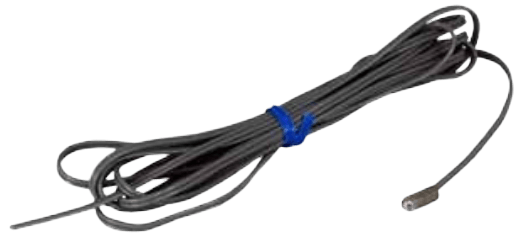

KTMP Thermistor & RTD Sensor
Brand: KeleThe Kele KTMP* Series Thermistor and RTD temperature probe is designed for applications requiring a small sensor with a fast thermal response.
Constructed with stainless steel housing, the probe is available with a choice of several thermistor and RTD sensor curves.
Features- Wide selection of thermistor and RTD curves
- Fast response time
- 0.19" round x 0.50" long (0.48 x 1.27 cm) housing
Specifications
Brand
Accuracy
- ± 0.28° C (± 0.50° F) - Thermistor
- ± 0.33° C (± 0.60° F) - RTD
Applications
- Applications Requiring Fast Thermal Response
Approvals & Certifications
- CE
Approvals & Certifications
- Compliance/Conformance
Dissipation
- Heat: 2.7 mW/°C (Power Needed to Raise the Temperature 1° C (1.8° F))
Electrical - Free Leads
- 18” (45 cm) Free Leads - for Typical 81
- 8 feet (2.4 metres) & 25 feet (7.6 metres), 24 AWG Wire Leads
Enclosure, Body Material
- Stainless Steel
Materials of Construction
- Element: Platinum
Mounting
- Directly to Surface
NACE & NIST
- NIST
Resistance
- 2.252 to 100 kiloohms - Thermistor
RTD Type
- Typical 63: Ni1000
- Typical 81 & 85: 100 & 1,000 ohms Pt385 Curve
- Typical 91: 1,000 ohms Pt375 Curve
Sensor, Probe Connection
- 3-Wire
Sensor, Probe Type
- RTD
- Thermistor
Stability
- ± 0.13° C (± 0.24° F) over 5-Years - for Thermistor
Temperature Coefficient
- Negative Temperature Coefficient - for Thermistor
- Positive Temperature Coefficient - for RTD
Temperature Range
- -40° to 105° C (-40° to 221° F) - Thermistor/RTD
