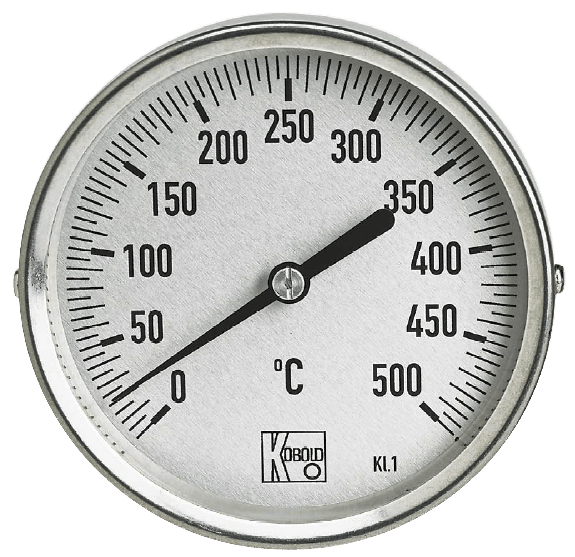

Kobold Thermometer, TBI-S

TBI-S Bi-Metallic Thermometer

Brand: KOBOLD Instruments, Inc
Add Product to My Catalog

Kobold Thermometer, TBI-S
The bimetallic thermometers are used on site for direct temperature measurement. A wide range of standard versions allows a variety of applications. Furthermore special versions are manufactured to customer specification. Special areas of application heavy industrial plants, piping and vessels, machines etc.

The devices are installed into a thermowell with adjusting screw. Simply screw in the thermowell, plug in the thermometer and clamp with the adjusting screw. The measuring element of the bimetallic thermometer is a fast-response bimetallic helix.

It is manufactured from two cold-welded strips of metal with different thermal coefficients of expansion and it becomes twisted as a function of temperature. The rotary motion is transferred with low friction to the pointer.

View_Details

Specifications

Brand

Accuracy

  • Category 1 (According to DIN 16203)

BSP Connection

  • G 1/2" Male

Display

  • Adjusting Pointer

Enclosure / Body Material

  • 304 Stainless Steel

Materials of Construction

  • 316Ti Stainless Steel - Protective Tube
  • Aluminum - Dial & Pointer
  • Copper Alloy - Protective Tube
  • Steel 35 - Protective Tube

Pressure Range

  • psi: 87.02 to 362.59 (kPa: 600 to 2,500, bar: 6 to 25)

Rotation

  • Approximately 270° - Dial Angle

Sensor / Probe Length

  • 63 - 200 mm

Temperature Range

  • -30° to 250° C (-22° to 482° F)

Thermowell

  • 316Ti Stainless Steel
  • Copper Alloy
  • Steel 35

Welded Connection

  • 1/2" Weld End

Window Material

  • Instrument Glass

Documentation

Data Sheets
