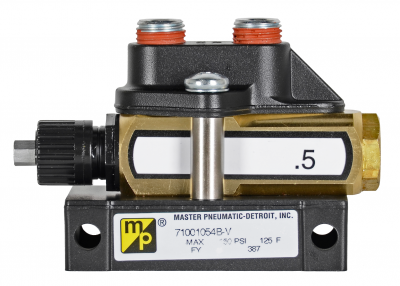

Series 710/720 Serv-Oil Multiple-Point Injection Lubricator
Brand: Master PneumaticUp to 10 Servo-Meters can be assembled to make up a multiple point lubricator (MPL).
Assembled MPLs can be ordered, or they can be assembled by the user employing the Servo-Meter and Assembly/Mounting Kits shown on the facing page.
Master Pneumatic recommends that you order factory-assembled MPLs.
The frequency of oil injection can be controlled by using one of the pulse counters or frequency controllers.
Series 710 factory assemblies employ two mounting holes. When a very rigid mounting is needed, order Series 720 which employs heavy-duty mounting plates with four mounting holes.
Features- Up to 10 Servo-Meters can be assembled to make up a multiple point lubricator (MPL).
- The frequency of oil injection can be controlled by using one of the pulse counters or frequency controllers supplied by Master Pneumatic.
Specifications
Brand
Ambient / Media Temperature
- 40° to 125° F (4° to 52° C)
Operating Pressure
- 60 to 150 psig (4.1 to 10.3 bar)
- Minimum Operating Air Pressure: 60 psig (4 bar)
Housing Material
- Servo-Meter Housing: Brass, Aluminum Optional
Oil Viscosity
- 0 to 400 cst @ 40° C
