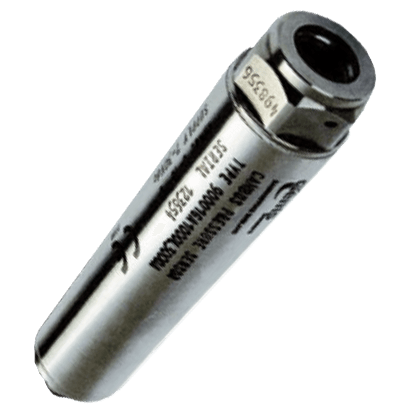

9000 Series CANbus Digital Output Pressure Transducer
Brand: Gems Sensors, Inc
The 9000 CANBUS pressure transducer meets the demands of the test and measurement industry, including automotive and marine applications, with high levels of accuracy over a wide temperature range.
The digital output in engineering units elimates the need for user system calibration.
Designed to have a wide input voltage range, input to output isolation, immunity to noise and self-diagnostics the 9000 is ideal for electrically noisy environments or applications where earthing or grounding can be a problem.
Through the standard CANopen protocol multiple devices can be used on a single bus reducing user cabling.
Features- High accuracy over wide operating temperature range T.E.B. ±0.2% Span, -40° to +185° F (-40° to +85° C)
- Excellent Long Term Stability <0.05% per year, non-cumulative
- Small size: 25mm diameter, 120 mm length
- Isolated high speed CAN interface - ISO11898
- Programmable update rate
- Standard application interface - CANopen DS301 & DSP404
- In system programmable
- Self diagnostics - bridge fault detection, hours in service, watchdog, last calibration date, next calibration date
- Unsurpassed customer support - Rapid Development Kit
Specifications
Brand
Accuracy
- ± 0.1 % of Full Scale
- Total Error Band: ± 0.2 % of Full Scale
Approvals & Certifications
- CE Emissions EN 61000-6-4, Immunity EN 61000-6-2
BSP Connection
- G 1/2" Male
- G 1/4" Female
- G 1/4" Male
Burst Pressure
- > 15 x Full Scale for Ranges ≥ psi: 1,450 (kPa: 9,997, bar: 99.97)
- > 35 x Full Scale for Ranges ≤ psi: 87 (kPa: 599.8, bar: 5.99)
- > 4 x Full Scale for Ranges ≤ psi: 10,007 (kPa: 69,000, bar: 690)
Cable Length
- 0 to 3,278 ft (0 to 999 m)
Compensated Temperature
- -40° to 85° C (-40° to 185° F)
Electrical Connectors
- Cable
- M12 x 1, 5-Pin
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP68
Metric Connection
- M14 x 1.5 Male
NPT Connection
- 1/2"-14 Male NPT
- 1/4"-18 NPT Male
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Pressure Range
- bar: 0 to 690
- kPa: 0 to 69,000
- psi: 0 to 10,000
Pressure Type
- Absolute
- Gauge
- Sealed
Proof Pressure
- 1.5 x Full Scale for Inconel
- 2 x Full Scale for 630 Stainless Steel (17-4 PH)
Stability
- Long Term Stability: Zero Drift < 0.05 % of Full Range Output Non-Cumulative
Supply Voltage
- 7-30 Vdc
UNF/UNC Connection
- 7/16"-20 UNF Male-3A
Vibration
- < 0.08 % FRO/g 20 to 2000 Hz, 35 G
Wetted Materials
- AISI 630 Stainless Steel, 17-4 PH
- Inconel
