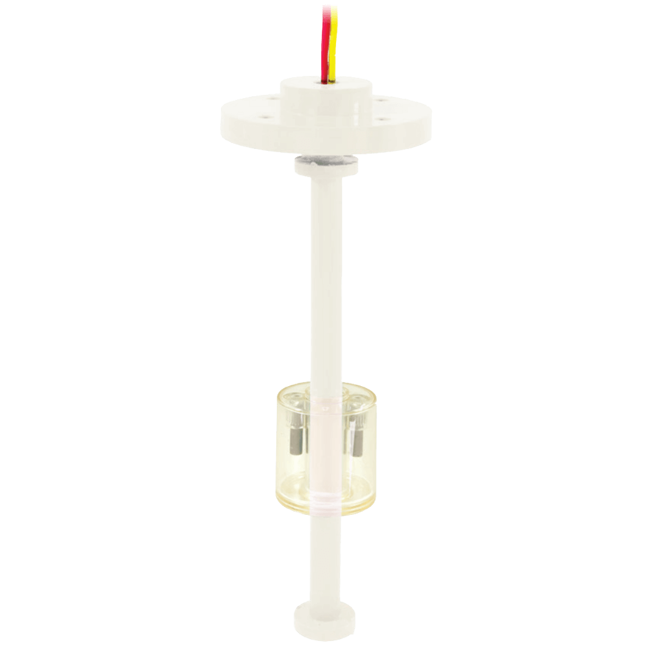

LS-300 Multi-Point Level Switch
Brand: Gems Sensors, Inc
Designed for the high quantity needs of the OEM, LS-300 Series Switches are the ideal level sensor for shallow tanks and reservoirs.
Compact and versatile, these low-cost, plastic level switches offer a broad choice of mountings and float materials.
Features- All plastic wetted parts
- 1 to 4 Actuation levels
- Lengths to 20" (50 cm)
- U.L. Recognized; CSA Listed Versions Available
Specifications
Brand
Approvals & Certifications
- CE
- CSA: Listed 30200
- UL (C,US): File No. E45168
BSP Connection
- 1”-11 BSP Male
- 1/4”-19 BSP Male
- G 1” Male
- G 1/4” Male
Electrical - Free Leads
- 22 AWG PVC (Jacketed) Cable, 24” (610 mm) Min.
Electrical Connectors
- Cable
- Junction Box Assembly (Terminal Box, 7 Terminals)
- Lead Wires
- Liquid-Tight Cable
- Plug: DIN 43650 (3-Poles), DIN 43651 (6-Poles)
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- 10 / 20 / 50 / 100 VA
Enclosure, Body Material
- Float: Buna-N
- Float: Polypropylene
- Float: Polysulfone
- Float: PVDF
Environmental Protection
- Junction Box, DIN 43650 & DIN 43651 Plug: IP65
- Leadwire, Cable: IP64
- Liquid-Tight Cable: IP68
Flange Size - 2” (DN 50)
- Unrated
Fluid Specific Gravity
- 0.37 to 0.95
Gasket Material
- Buna
Length
- Maximum
Materials of Construction
- Mounting & Collar Material: Noryl
- Mounting & Collar Material: Polysulfone (Water-based)
- Washer: Nylon
Maximum System Pressure
- psi: 300 (kPa: 2,100, bar: 21)
Metric Connection
- M12 x 1.5 Male
Mounting Position
- Vertical ± 30°
NPT Connection
- 1” NPT Male
- 1/8” NPT Male
O-Ring Material
- Buna-N
Operating Temperature - Sensor
- Liquids: -40° to 121° C (-40° to 250° F)
- Oil: -40° to 105° C (-40° to 221° F)
Sensor / Probe Style
- Float
Stem Material
- Noryl
- Polysulfone
Switch Type
- SPST
Wetted Materials
- Plastic
