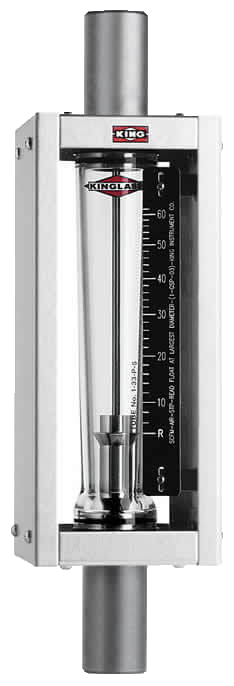

7470 Series Glass Tube Flowmeter
Brand: King Instrument CompanyAvailable with NPT or flange connections, vertical or horizontal, this 127 mm scale glass tube meter offers value and versatility in 304 stainless steel case construction.
Features- Versatile Borosilicate Kinglass Meter
- 304 SS Case and Internals
- NPT or Flange Connections, In-Line or Horizontal
- 127mm Detachable, Direct Reading Scales
- 0.25 – 116 GPM Water; 1 – 245 SCFM Air
1 - 12 of 3,560 Part Numbers
747-1-2-1-31A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 1 SCFM
- Alarm - Without Alarm
747-1-2-1-31W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 0.25 GPM
- Alarm - Without Alarm
747-1-2-1-32A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 1.5 SCFM
- Alarm - Without Alarm
747-1-2-1-32W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 0.36 GPM
- Alarm - Without Alarm
747-1-2-1-33A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 3 SCFM
- Alarm - Without Alarm
747-1-2-1-33W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 0.74 GPM
- Alarm - Without Alarm
747-1-2-1-41A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 4.2 SCFM
- Alarm - Without Alarm
747-1-2-1-41W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 1 GPM
- Alarm - Without Alarm
747-1-2-1-43A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 8.2 SCFM
- Alarm - Without Alarm
747-1-2-1-43A-1
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 8.2 SCFM
- Alarm - With Alarm
747-1-2-1-43W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 2 GPM
- Alarm - Without Alarm
747-1-2-1-43W-1
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 2 GPM
- Alarm - With Alarm
1 - 12 of 3,560 Part Numbers
Specifications
Brand
Metering Tube
- Borosilicate Kinglass
Internal Components
- 316L Stainless Steel
- Hastelloy® C-276
Fitting Material
- 316L Stainless Steel
- PVC
Inlet/Outlet Fittings
- FNPT or flange, vertical or horizontal
O-Ring
- Viton
- Buna-N
- EPR
- Kalrez®
Case and Covers
- 304 Stainless Steel case
- Polycarbonate shield
Capacities
- Water: 0.25 to 116 GPM
- Air: 1 to 245 SCFM
Scale
- 127 mm (5") Direct reading, detachable
Accuracy
- ± 3 % of full scale flow
Turndown
- 10:1
Repeatability
- 0.5%
Max Temperature
- 316L Stainless Steel fittings Gases: 250° F
- 316L Stainless Steel fittings Liquids: 200° F
- PVC fittings Liquid: 110° F
Max Pressure
- 316L Stainless Steel fittings: 250 psig, size 3 & 4
- 316L Stainless Steel fittings: 200 psig, size 5 & 6
- 316L Stainless Steel fittings: 150 psig, size 8 & 9
- PVC fittings: 150 psig
