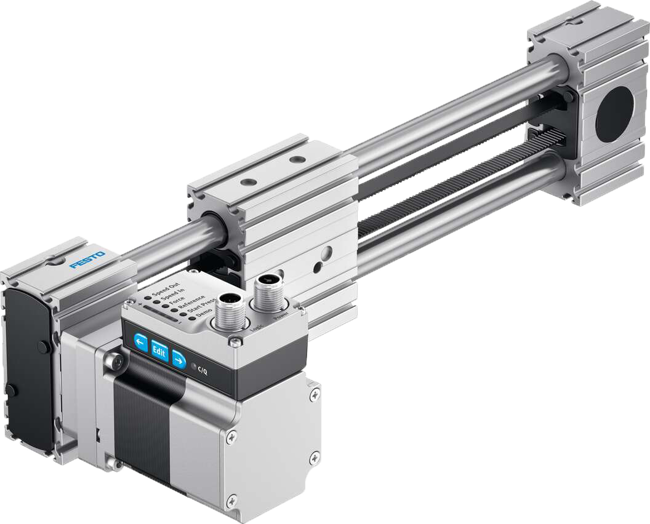

ELGE Toothed Bbelt Axis Unit
Brand: Festo
The very attractively priced toothed belt axis ELGE-TB features very smooth running characteristics that make it ideal for simple tasks.
As part of the Simplified Motion Series, the ELGE-TB is easy to configure and can be put into operation directly without software. Includes IO-Link and digital I/O (DIO).
Features- Complete solution consisting of integrated actuator, motor and servo drive
- Cost-optimized design for easy motion and positioning tasks between two mechanical end positions as well as intermediate positions
- Running performance of 5000 km
- Free choice of flexible motor mounting on four sides
- Integrated end position sensing
- Two control options integrated as standard: digital I/O and IO-Link
- Easy commissioning according to the plug and work principle: all parameters are manually adjustable directly on the actuator without any software or special expertise required
- Product of the Simplified Motion Series: does not need any external servo drive or any control cabinet for the installation
Specifications
Brand
Size
- 35
Stroke
- 50 to 800 mm
Mounting
- With Female Thread
- With Accessories
- With Centring Pin, Centring Sleeve
Display
- LED
Parameterisation Interface
- IO-Link
- User Interface
Ambient Temperature
- 0° to 50° C
Storage Temperature
- -20° to 60° C
Humidity
- 0 to 90% RH
Environmental Protection
- IP20
Certifications & Approvals
- CE
- UKCA
- KC EMC
- RCM
