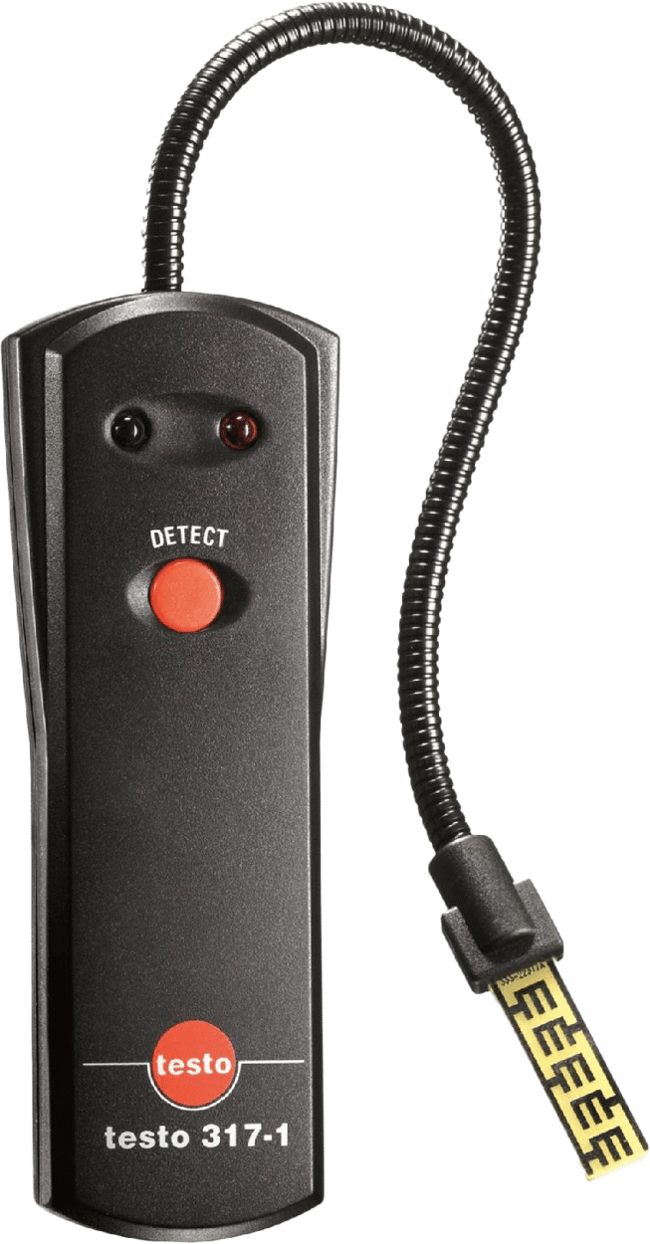

Testo 317-1 - Gas Spillage Detector
Brand: TestoGas leaks on heating systems can quickly become a problem, because breathing in poisonous gases leads to health risks or even a risk of death.
With the testo 317-1 back pressure indicator, you have a handy measuring instrument which detects escaping heating flue gases quickly and reliably.
The testo 317-1 quickly and efficiently detects escaping flue gases at the source.
Flue gas escaping from a burner is caused by equipment failure and is an indicator of CO in the living space; this will trigger an audible and optical alarm.
Features- Reliable detection of escaping flue gases
- Flexible probe for inaccessible areas
- Acoustic and visual alarm
Specifications
Brand
Delivery Scope
- Testo 317-1 Back Pressure Indicator, including Battery
Weight
- 11 oz. / < 300 g
Reaction Time
- 2 sec
Dimensions
- 5 x 2 x 1 in. / 128 x 46 x 18 mm
Measuring Medium
- Ambient Air
Alarm Signal
- Audible, rpm - Optical
Battery Type
- 3 x AAA
Length Probe Shaft
- 7.874 in. / 200 mm
Length Probe Shaft Tip
- 1.378 in. / 35 mm
Diameter Probe Shaft Tip
- 0.394 in. / 10 mm
