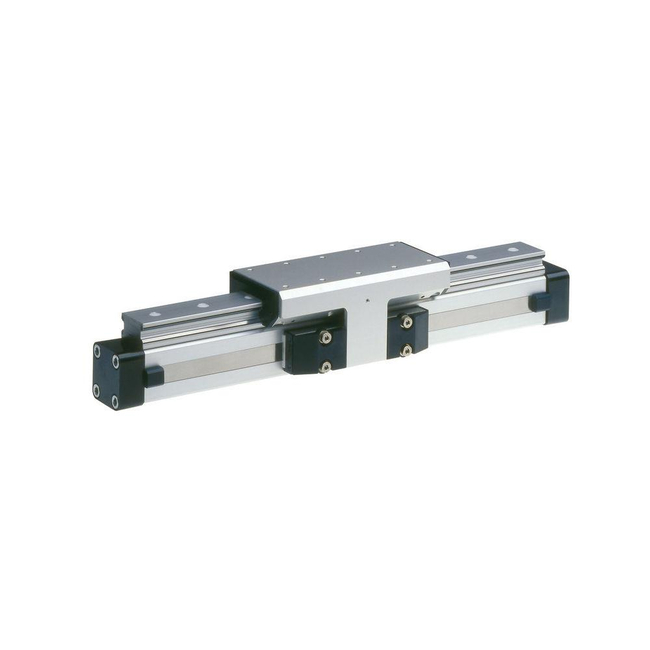

OSPE50-B Belt Driven, PROLINE Roller Guide, Rodless Electric Linear Actuator

OSPE50-B Belt Driven, PROLINE Roller Guide, Rodless Electric Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

With multiple guide, carriage and mounting options and an IP54 rating, along with a multitude of other customizable features the OSPE-B 50 is designed to be our most versatile yet cost-effective point to point positioner. Suitable for payloads up to 3582 N.

Designed to offer dynamic, flexible positioning the OSPE50-B belt driven actuator with PROLINE roller bearing for improved productivity in transfer handling operations within industrial, manufacturing and assembly environments.
Features
  • Belt driven actuator for dynamic motion and positioning with long travel
  • High acceleration and speed for reduced process times
  • Precise aluminum roller guide for high loads and speed
  • Smooth operation offering low noise operation
  • Integrated seal strip offering IP54 protection
  • Tandem carriage configuration for higher load supports
  • Pre-configured motor and gearhead mounting kits for simplified installation
  • Dovetailed mounting rails allow simplified clamping of modular system components

Specifications

Brand

Additional Protection Option

  • Steel Strip Cover

Approvals & Certifications

  • Cleanroom Certified (Custom Option)

Bearing Type

  • PROLINE Roller Guide

Corrosion Resistant Option

  • No

Drive Type

  • Belt

Idler Unit Option

  • No

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 393

Maximum Acceleration (m/S2)

  • 10

Maximum Payload FZ (N)

  • 3582

Maximum Speed (inch/sec)

  • 197

Maximum Speed (m/sec)

  • 5

Maximum Stroke (inch)

  • 147

Maximum Stroke (mm)

  • 3750

Maximum Thrust FX (Lbs)

  • 96

Maximum Thrust FX (N)

  • 425

Position Repeatability (± Inch)

  • 0.002

Position Repeatability (± mm)

  • 0.05

Profile Width (mm)

  • 87

Series

  • OSP-E

Typical Payload FZ (N)

  • 100 - 850

  • Pick and Place Applications
  • Packaging, Labeling and Wrapping Systems
  • Pusher, Picker and Gripper Applications
  • Positioning
  • Feeding
  • Cutting
  • Markets
    • Factory Automation
    • Miscellaneous Industrial
    • Miscellaneous Manufacturing
    • Packaging Machinery
    • Printing and Marking Equipment
    • Vehicle Assembly Facilities
    • Lab / Diagnostic
    • Coatings / Ink / Paint
    • Food & Beverage
    • Bus and Coach
    • Rail
