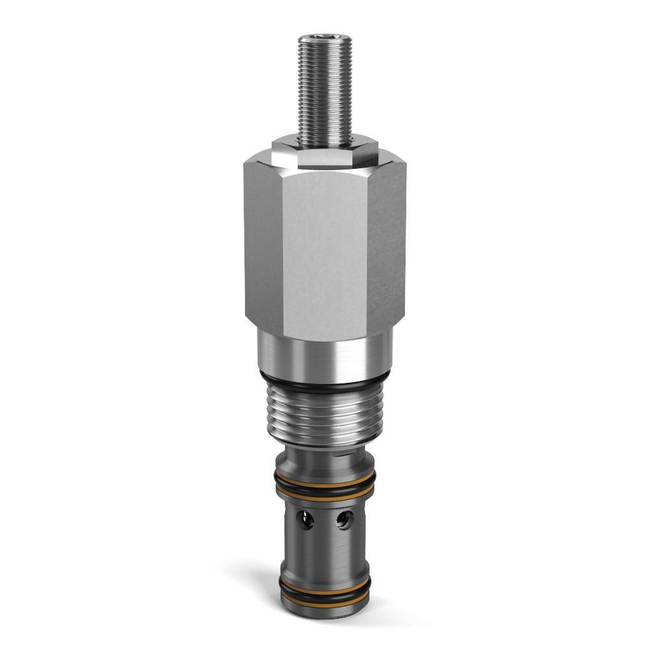

Pilot Operated Sequence Valve with Reverse Check

Pilot-Operated Sequence Valve with Reverse Check

Brand: Parker Hannifin
Add Product to My Catalog

Parker’s pilot operated sequence valve with a built-in reverse check reduces manifold space, complexity, and the number of components in a hydraulic system.

These valves can work with pressures up to 420 bar (6000 psi) and flows up to 70 lpm (18.5 gpm) and allow for multiple double acting functions to be operated with a single directional control valve.

Parker’s pilot operated sequence valve with a built-in reverse check can be utilized in several applications, but is ideal for load control and clamping or press applications within mobile and industrial markets.
Features
  • High pressure and flow capacity
  • Integrated 250 micron screen
  • Hardened, precision ground parts for durability
  • All external parts zinc plated

Specifications

Brand

Adjustment Type

  • Screw Adjust, Knob Adjust, Tamper Resistant Cap

Cavity Size

  • C10-3S

Drain Option

  • External

Filtration Ratings

  • ISO 4406: 1999 Code 18/16/13

Installation Torque (Lbs/Ft)

  • 37

Installation Torque (Nm)

  • 50

Leak Rate (drops/min)

  • 50 @ 1450 psi (100 bar)

Maximum Inlet Pressure (bar)

  • 420

Maximum Inlet Pressure (psi)

  • 6000

Maximum Tank Pressure (bar)

  • 420

Maximum Tank Pressure (psi)

  • 6000

Operating Temperature (°C)

  • -34° to +121° C, -26° to +204° C

Operating Temperature (°F)

  • -30° to +250° F, -15° to +400° F

Pilot Option

  • Internal

Pressure Control Sensitivity (bar)

  • 30 Per Turn, 55 Per Turn

Pressure Control Sensitivity (psi)

  • 435 Per Turn, 800 Per Turn

Pressure Range Adjustment (bar)

  • 10-210, 10-420

Pressure Range Adjustment (psi)

  • 145-3000, 145-6000

Rated Flow (gpm)

  • 18.5

Rated Flow (Lpm)

  • 70

Rated Fluid Viscosity (CSt)

  • Mineral-based or Synthetic with Lubricating Properties at Viscosities of 45-2000 SSU (6 to 420 cSt)

Seal Material

  • Nitrile, Fluorocarbon

Standard Setting Pressure (bar)

  • 100, 200

Standard Setting Pressure (psi)

  • 1450, 2900

Valve Material

  • All Parts Steel. All Operating Parts Hardened Steel

Weight (kg)

  • 0.25

Weight (Lbs)

  • 0.55

  • Clamping
  • Load Holding
  • Actuator Control
  • Motor Control
