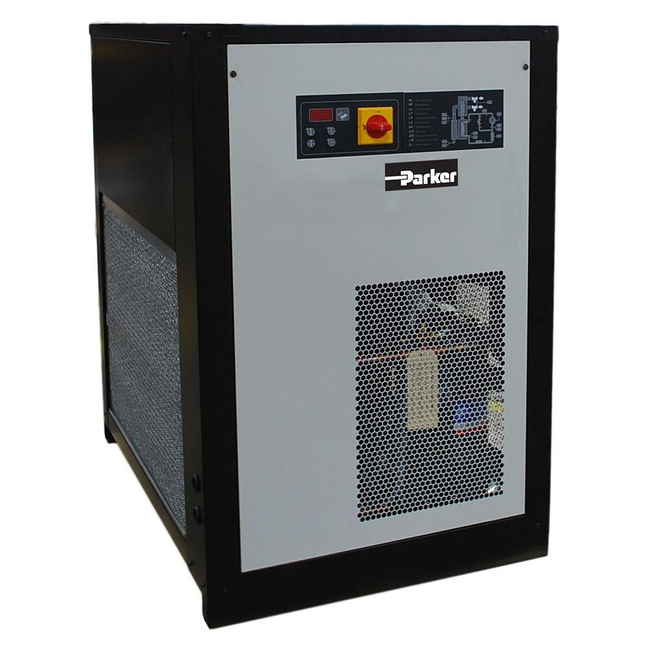

Refrigeration Dryer Series - PRD325-PRD2400 (325-2400 SCFM)

Brand: Parker Hannifin

The Parker PRD Series refrigeration air dryer increases efficiency and productivity and are ideally suited for general purpose oil free pneumatic air treatment applications.

They typically provide pressure dew points of 35°F (1.7°C) to 50°F (10°C) pressure dew point (pdp).

Refrigeration air dryers work by cooling the air, so are limited to positive pressure dew point ratings to prevent freezing of the condensed liquid.

Refrigeration dryers use a set of heat exchangers or a single heat exchanger (with chambers) first to pre-cool the air; second to refrigerate the air to condense out moisture vapor; and last to re-heat the air to prevent pipe sweating downstream particularly in humid conditions.

Non-Cycling (Direct Expansion) dryers are a type of dryer where the compressed air and the refrigerant come into direct contact via the heat exchanger.

While reliable and simple to use, they generally require that the unit continues to run regardless of actual compressed air flow through the dryer.

Cycling dryers that utilize a thermal mass as the means to absorb the heat from the compressed air.

By chilling a thermal mass, a refrigerant compressor may turn off in times of low demand thereby saving energy by shutting off the refrigerant compressor.
Features
  • Cycling (SmartSave) control
  • SmartPack heat exchanger
  • SmartControl micro processor controller
  • Energy efficient scroll compressor
  • SmartDrain dual mode zero air loss drain

Specifications

Flow Rate (m3/hr)

  • 552 to 4078

Flow Rate (scfm)

  • 325 to 2400

Function

  • Refrigeration Dryer

Input Supply Voltage

  • 230 Vac / 460 Vac

Maximum Inlet Temperature (°C)

  • 60° C

Maximum Inlet Temperature (°F)

  • 141° F

Maximum Operating Pressure (bar)

  • 14 (552 - 4078 m³/hour.)

Maximum Operating Pressure (psig)

  • 203 (325 - 2400 scfm)

Mounting

  • N/A

Operating Temperature (°C)

  • 5° to 50° C

Operating Temperature (°F)

  • 41° to 122° F

Port Size

  • 2” NPT-F, 3” NPT-M, 4” Flange, 6” Flange

Pressure Drop (bar)

  • Less than 0.35 (At Rated Flow)

Pressure Drop (psi)

  • Less than 5 (At Rated Flow)

Weight (kg)

  • 145 to 690

Weight (Lbs)

  • 320 to 1521

  • General Assembly
  • General Pneumatic
  • General Industrial
  • Factory Automation
