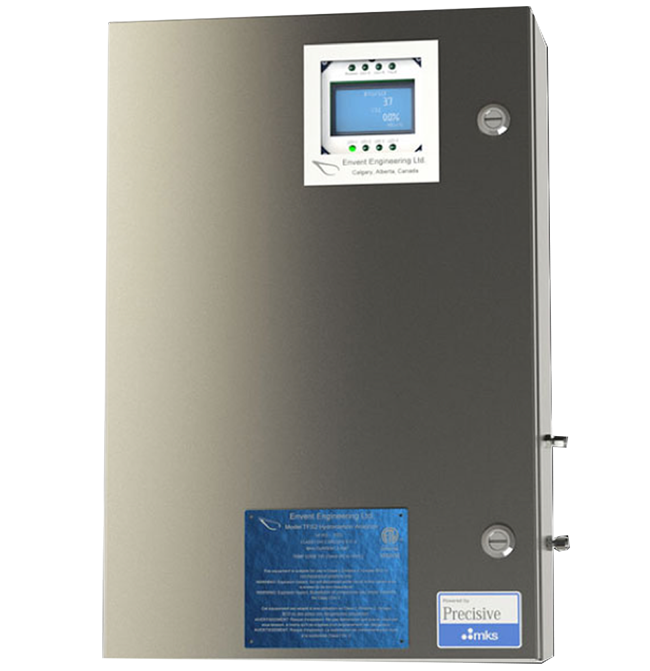

TFS Hydrocarbon Composition Analyzer
Brand: Envent Engineering LtdThe TFS offers a multi-component gas analysis at unparalleled speed. The standard Envent TFS measures methane, ethane, propane, iso-butane, iso-pentane and a combined measurement for (n-butane, n-pentane and n-hexane), as well as percent level CO2 and H2S.
The spectrometer utilizes a tunable Fabry-Perot assembly that provides wavelength scanning along with advanced spectral processing that can produce response times as fast as 1 to 10 seconds.
Additional measurement options are available depending on the application. This includes component analysis for the Hydrocarbon Processing Industry such as ethylene, propylenes, and butenes.
Sampling is with a flow- through cell, suitable for continuous, online, unattended operation. The analyzer does not require carrier gas, fuel gas or on-site calibration gas.
The standard Envent system configuration provides measurements of up to 100% methane, 25% ethane, 25% propane, 10% butanes and 10% pentanes, 100% H2S and 100% CO2. Diatomic compounds such as nitrogen, oxygen and hydrogen are not measured directly and are combined and reported as one group of unmeasured inert gases.
Features- First principle measurement
- Physical properties such as Heating Value (BTU)
- Linear response throughout the measurement ranges
- Sample cell pressure and temperature compensated
- Remote & completely unattended operation
- Additional measurement recipes available
- Data logging
- Stream Switching
1 - 7 of 7 Part Numbers
TFS-EX
TFS-P-SS
TFS-P-TC
TFS1
TFS2
TFSP
TFSYP
1 - 7 of 7 Part Numbers
Specifications
Brand
Measurement Range
- Methane (CH4): 2000 ppm – 100%
- Ethane (C2H6) & Propane (C3H8): 2000 ppm – 25%
- i-Butane (C4H10) & i-Pentane (C5H12): 1000 ppm – 10%
- n-Butane (C4H10) + n-Pentane (C5H12): 1000 ppm – 10%
- Carbon Dioxide (CO2): 1% – 100% Hydrogen
- Sulfide (H2S): 1% – 100%
Component Channels
- 8 Components
Accuracy
- H2S ± 0.2% or 1% of Reading, whichever is greater
- CO2: +/- 0.2%
Repeatability
- 0.01% / 0.05%
Zero Drift
- Less than ±0.2% (absolute) per week (zero on air or N2)
Update Time
- 1 to 10 seconds typical
Power
- 24 VDC (Optional 120/240 VAC, 75 peak 35 watts nominal)
Display
- 128 x 64 Graphic Display
- Menu is scrolled by internal button or external magnet
Certifications & Approvals
- CSAus
- Certified for Class I Division 2, Groups B, C, D
- ETL
- COR
- ISO
Dimensions
- 61.0 x 45.7 x 30.5 cm – 61 kg (approx)
- 24″ x 16″ x 12″ – 135 lbs (approx)
- Natural Gas Measurements Including Processing, Transmission, Storage and Distribution
- Calculation of Heating Value (BTU) and Wobbe Index As Per GPA 2172
- Power Generation (Turbine, Internal Combustion Engine, Fuel Cell)
- LBG/LPG/BOG
- Acid Gas
- Gas Plant Inlet
- Truck/Ship/Railcar Unloading Terminals
- Portable/Temporary Analysis
- Fuel Gas Monitoring
- Pipeline Blending
- Flare Gas Monitoring
