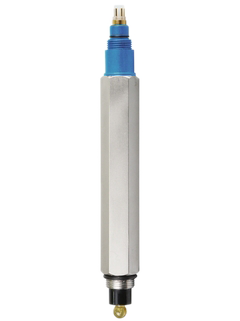

Analog pH Sensor Purisys CPF201
Brand: Endress+Hauser Group Services AGPurisys CPF201 is the specialist for pure and ultrapure water. Its integrated stainless steel assembly provides stable and flow-independent measurement at lowest conductivities.
Purisys ensures optimum water quality and guarantees highest safety of your products or assets.
- Boiler feed water
- Power plant applications
- Pharmaceutical water for injection
- Stable pH reading and response
- Elimination of flow dependency errors
- Patented porous PTFE reference junction
- Easy installation
Specifications
Measuring Range
- pH 1-13 (<100 µS/cm)
Material of Construction
- Glass, Stainless Steel
Process Temperature
- 2° to 75° C (36° to 167° F)
Process Pressure
- Max 3 bar (43.5 psi)
Connection
- TOP68 Connection Head or Fixed Cable Connection
Ingress Protection
- IP68
Temperature Sensor
- Optional with Integrated Pt100, Pt1000
Dimensions
- Installation on A Plate 305 x 305 mm (11.89 x 11.89 inch)
- Ultra Pure Water (<100 µS/cm)
- Power Plants
