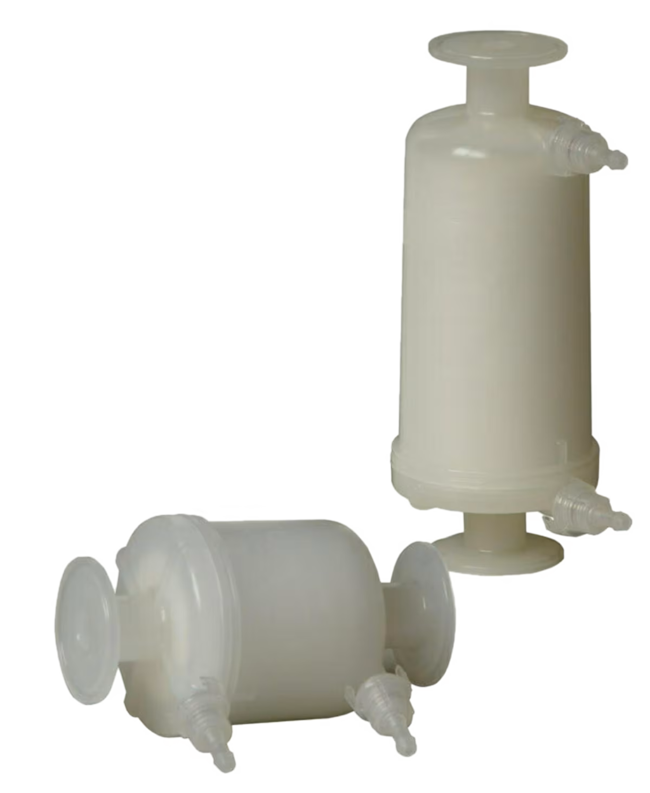

3M™ Betapure™ AU Series Filter Capsule

Brand: 3M Purification
Add Product to My Catalog

We set a high standard of filtration with our Betapure™ AU Series Filter Capsules. This capsule is a polypropylene encapsulated filter that does not require a separate filter vessel.

Available in a wide range of configuration, including sanitary flange and hose barb connections, the 2.5" and 5" capsules are ideal for small batch and filter test applications.

Our wide range of filter porosities allows you to precisely tailor performance characteristics and achieve optimal filtration economy by enabling defined reduction cut-off points by particle size.

We developed Betapure™ AU series filter capsules using state-of-the-art technology to produce a clean, rigid, filter structure that generates reproducible effluent consistency.

The filter matrix is constructed using long bicomponent fibers, each fiber having an inner core and an outer sheath.

Betapure™ AU series filters are available in two bicomponent fiber structures, polypropylene/polyethylene or polyester/co-polyester, to provide the greatest range of compatibility for your particular process.

In manufacturing the Betapure™ AU Series Filter Capsule we combine stringent material quality assurance standards, exacting in-process controls, along with extensive final product testing and verification.

The results are products that provide consistent filtration from lot-to-lot, filter-to-filter. The bicomponent fibers of the filter matrix are thermally bonded with a high degree of fiber-to-fiber bonding.

This provides a rigid structure that eliminates the need for a core support, along with any possibility of media migration.
Features
  • Rigid structure provides consistent and reproducible contaminant reduction
  • Excellent reduction of deformable contaminants for consistent effluent
  • Ideal for small batch and filter test applications
  • Rigid structure reduces cartridge by-pass and unloading for consistent filtration throughout product lifecycle
  • Low pressure drop provides long service life while using smaller filter housings

View_Details

Specifications

Brand

Brand

  • Betapure™

End Configuration

  • 222 O-Ring & Flat Cap

End Modification

  • 10" 5UM DOE,1-1/2" Sanitary Flange,10" 100UM DOE PE,5" 75UM DOE PE,10" 175UM DOE,20" 150UM 222/FLTCP FLRCBN,30" 30UM 226/SPEAR SLCNE,Code 3 Single O-Ring w/Polypropylene Snap Ring,Code 3 Double O-Ring,No End Modifcation,222/Flat Cap,3/8" FNPT,1/4" MNPT,30" 5UM 222/SPEAR SLCNE,No End Modification,5" 175UM DOE,30" 20UM DOE PE,20" 3UM ABS DOE NTRL,1.875" 5UM DOE,Code 7 Bayonet Lock,Code 3 Double O-Ring,10" 75UM DOE PE,Not Pertinent,Non Pertinent,0.375" FNPT,DOE w/ Hard Cap 10",Code 8 Double O-Ring,29.2" 100UM DOE,Double Open End w/Hard Cap 9.75" Nom. Length,Tapered Hose Barb,10" 150UM DOE PE,20" 3UM ABS 222/FLTCP FLRCBN,1/2" hose Barb

Factory ISO Certification

  • No ISO Certification information available

Filter Material

  • Polyolefin, Bi-component Polypropylene/Polyethylene Fibers, Polyester, Polypropylene

Filter Technology

  • Non-woven

Filter Type

  • Depth

Gasket/O-ring Material

  • Silicone, Polyethylene, Fluorocarbon, PTFE Encapsulated Fluorocarbon, Nitrile, EPR

Grade

  • 0.2 micron

Industries

  • Industrial

Maximum Operating Temperature

  • 80° C - 125° C (104° to 250° F)

Micron Rating

  • 90 Absolute, @ 95 %, 12 μm, 20 μm, 40 μm, 6 Absolute, @ 95 %, 12 Absolute, @ 95 %, 140 μm, 20 Absolute, @ 95 %, 190 μm, 140 Absolute, @ 95 %, 70 μm, 100 Absolute, @ 95 %, 40 Absolute, @ 95 %, 5 μm, 90 μm, 160 μm, 15 μm, 7 μm, 5 Absolute, @ 95 %, 160 Absolute, @ 95 %, 100 μm, 3 Absolute, @ 95 %, 70 Absolute, @ 95 %, 190 Absolute, @ 95 %, 3 μm, 150 μm, 0.006 μm, 0.007 μm, 2 μm, 2 Absolute, @ 95 %, 15 Absolute, @ 95 %, 0.2 μm, 8 Absolute, @ 95 %, 10 Absolute, @ 95 %, 10 μm, 8 μm, 7 Absolute, @ 95 %, 150 Absolute, @ 95 %, 120 Absolute, @ 95 %, 170 μm, 60 μm, 0.06 μm, 0.05 μm, 50 μm, 0.07 μm

Product Color

  • White

Product Form

  • Cartridge

Product Series

  • AU, AUL

Series

  • Betapure™ AU Series, Betapure™ AUL Series

Total Units per Case

  • 1 per Case, 20 per Case

Units per Case

  • 15.0,1.0,3.0,10.0,20.0,5.0,62.0,30.0,9.0

Overall Diameter

  • 2.5 in, 3 in, 2.92 in
  • 6.35 cm, 63.5 mm, 76.2 cm, 74.168 mm, 7.42 cm

Overall Length

  • 30 in, 40 in, 20 in, 1 in, 29 in, 62 in, 6 in, 5 in, 10 in, 9.75 in, 19.5 in, 29.25 in, 39 in, 4.785 in, 2 in, 2.5 in
  • 76.2 cm, 101.6 cm, 50.8 cm, 2.54 cm, 762 mm, 736.6 mm, 157.48 cm, 15.24 cm, 127 mm, 25.4 cm, 24.8 cm, 49.53 cm, 74.295 cm, 254 mm, 24.765 cm, 99.06 cm, 12.7 cm, 121.412 mm, 50.8 mm, 6.35 cm, 508 mm

Overall Width

  • 2.5 in, 2.913 in (6.35 cm, 7.4 cm)

  • General Industrial
  • Automotive Top Coat Filtration
  • High Quality Paint Filtration
  • Coatings
  • Food & Beverage
  • Electronics
  • Resins
  • Industrial
