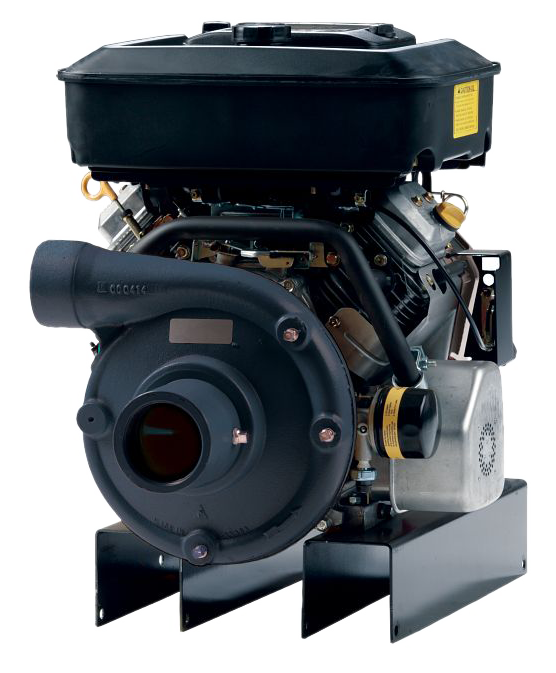

FNG-23V End Suction Gas Engine Driven Centrifugal Pump
Brand: Franklin Electric Co, Inc.Our centrifugal gas engine pumps can be used in mining, irrigation, construction and other heavyduty applications.
Features- Close-coupled design with the pump impeller threaded directly onto the engine shaft.
- Cast Iron construction volute makes for a robust and rugged product
- Cast iron construction balanced impeller, designed for maximum efficiency.
- Self lubricating, Type 21, 1-1/4-inch mechanical seal.
- Replaceable bronze wear ring.
- 23 horsepower Briggs & Stratton Vanguard V Twin engine.
- Cast iron cylinder sleeves for extended life.
- Electric start (Battery and Cables not included)
- Low Oil Alert (oil pressure switch installed for low oil warning light, warning light not included)
Specifications
Capacities
- Up to 400 gpm
Head
- Up to 275 feet
Maximum Working Pressure
- 125 psi
Maximum Temperature
- 212 °F
- Water Truck
- Irrigation
- Commercial
- Construction
- Municipal
- General Services
