AST Sensors Miniature Load Cell, ELHM

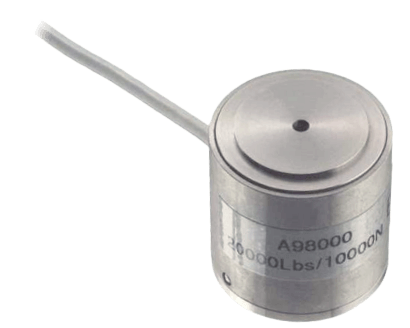

ELHM Miniature Load Cell

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The ELHM load cell is a compact package able to fit into many applications where others cannot.

When compact design and superior stability are required, the ELHM load cell is the sensor for your application. The ELHM is provided with either SAE or metric threads for tension and compression applications.

Care should be exercised to isolate your ELHM from off-axis loads. The ELHM is a Poisson column design providing low full scale input deflection and superior stability for longer term measurements. Designed specifically to provide high zero stability, the ELFM is rated for a cycle life expectancy of typically 1 x 106 0-FS cycles of zero to full rated load.

The ELHM can be configured with a variety of different options to fine tune the instrument to your application: select from several standard compensated temperature ranges, input voltages, lead lengths or specify entirely unique combinations of these options.
Features
  • Low mass compression style or tension compression with studs
  • Sensitivity FSO: 2mV/V
  • Low noise
  • High reliability

View_Details

Specifications

Brand

Applications

  • Assembly Forces
  • Hoist & Winch Loads
  • Long Period Force Measurements
  • Product Validation Testing
  • Theatrical Rigging Loads
  • Thrust Measurements
  • Tool Forces
  • Weighing

Approvals & Certifications

  • CE EN 61010-1, EN 50081-1, EN 50082-1

Compensated Temperature

  • 20° to 80° C (68° to 176° F)

Hysteresis

  • ± 0.25 % of Full Scale

Operating Temperature

  • -50° to 120° C (-58° to 248° F)

Resistance

  • 350 ohms Nominal

Sensitivity

  • ± 0.02 %/°C Thermal Sensitivity Shift
  • 2 mV/V (Full Scale Output)

Supply Voltage

  • 5 Vdc

Termination

  • 3 metres Shielded Cable

Zero Offset

  • ± 0.04 mV/V

  • Theatrical Rigging Loads
  • Assembly Forces
  • Weighing
  • Tool Forces
  • Thrust Measurements
  • Long Period Force Measurements
  • Product Validation Testing
  • Hoist and Winch Loads
