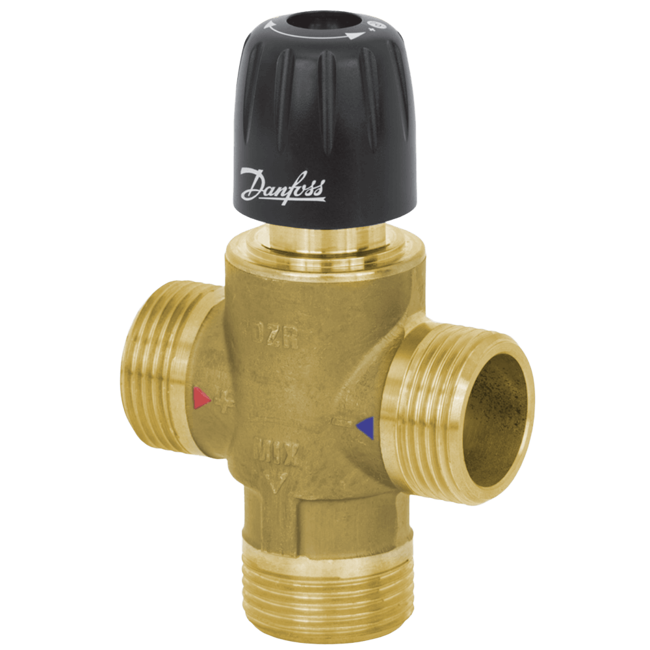

TVM-H Thermostatic Mixing Valve
Brand: DanfossTVM-H limits and maintains constant Ievel of mixing temperature in a system. The thermostatic mixing valve ensures a constant temperature of the mixed water at the outlet.
TVM-H can be used in heating applications.
Features- Constant temperature of the water at the outlet
- Variable setting of the nominal temperature range: 30° to 70° C
- Special design with anti-scalding coating
- System components: accessories and spare parts
Specifications
Brand
Applications
- Heating Applications
- Water Applications
BSP Connection
- TVM-H 20: G 1” Male
- TVM-H 25: G 1-1/4” Male
Cap Material
- Plastic Cap: Polystyrene
Enclosure, Body Material
- (Brass) DZR + Antilimescale Treatment
Flow Rate
- TVM-H 20: 1.65 to 1.9 m³/hour (Kvs)
- TVM-H 25: 2.6 to 3 m³/hour (Kvs)
Operating Temperature
- Maximum
Ratio
- Maximum
Seat / Seal Material
- Sealing: EDPM
Spring Material
- 304 Stainless Steel (Inoxydable) (1.4301)
Stability
- Temperature Stability: ± 3° C (± 5.4° F)
Supply Pressure
- Dynamic, Max.
- Static, Max.
Temperature Range
- Cold Water Supply Temperature: 10° C (50° F)
- Factory Presseting & Hot Water Supply: 70° C (158° F)
- Heating Applications
- Water Applications
