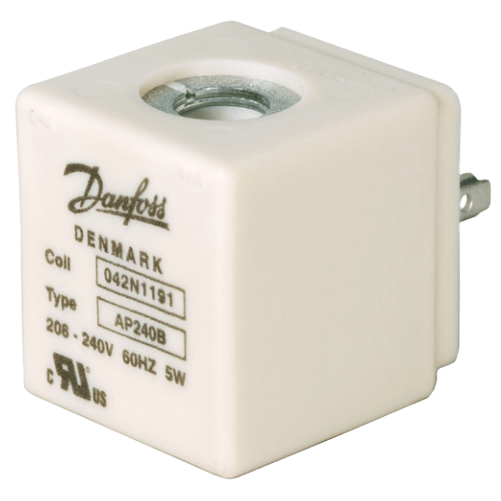

AP Solenoid Coil

Brand: Danfoss

Danfoss solenoid valves and coils are usually ordered separately to allow maximum flexibilit, enabling you to select a valve and coil combination to best suit your needs.

The Danfoss coil program consists of both the easy-to-handle Clip-On system and traditional coils with threaded fastener.

Danfoss offer a wide range of application specific coils for e.g. steam or hazardous areas.
Features
  • Ambient temperature: Up to 50° C / 122° F
  • IP65 / NEMA2
  • For UL recognised valves

1 - 3 of 3 Part Numbers
042N4191
042N4191
  • Model - 042N4191
042N4192
042N4192
  • Model - 042N4192
042N4193
042N4193
  • Model - 042N4193
1 - 3 of 3 Part Numbers

Specifications

Brand

Ambient Temperature Range

  • -40° to 50° C (-40° to 122° F)

Approvals & Certifications

  • ATEX
  • cULus
  • LVD 2014/35/EU, EN 60730-1 & EN 60730-2-8
  • RoHS Directive 2011/65/EU
  • VDE 0580

Consumption

  • 11-15 VA - Power Consumption
  • 5.5-7.5 W - Power Consumption

Electrical Connectors

  • Cable Plug (042N0156)
  • Spade Connector in Accordance with DIN 43650 Form A

Environmental Protection

  • IP00 Version with DIN 43650 A Spade Connectors
  • IP20 Version with Protective Cap
  • IP65 Version with Cable Plug
  • NEMA 2 with Cable Plug

Frequency

  • 50/60 Hz

Length

  • 1.89” (48 mm) - without Cable Plug
  • 2.52” (64 mm) - with Protective Cap
  • 2.83” (71.88 mm) - with Cable Plug

Supply Voltage

  • 24-240 V (± 10 % Variation)

Winding Insulation

  • Class H According to IEC 85
