ABNM A5 Thermal Actuator

Brand: Danfoss

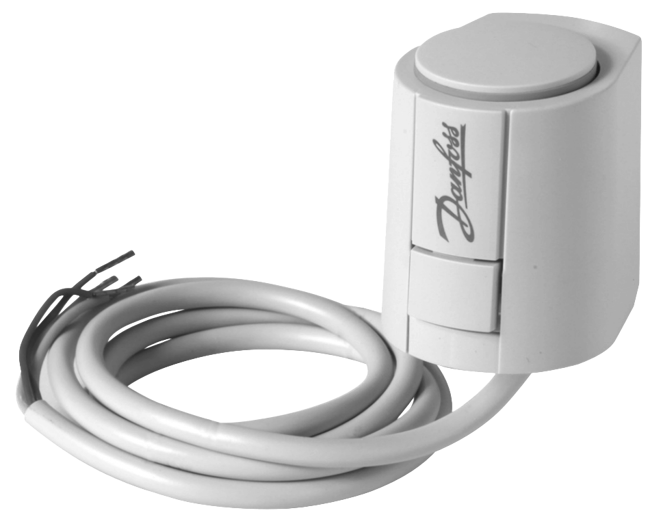

The ABNM A5 0-10 V thermal actuator has been specifically designed for use with AB-QM valves DN10-32 / 1/2" to 1-3/4" in heating and cooling applications.
Features
  • Stroke 5 mm or 6.5 mm
  • Detection of AB-QM opening and closing point
  • Available as normally closed (NC) or normally open (NO)
  • Power consumption 1/1.2 W
  • Plug-in halogen free cable
  • Simple snap-on installation
  • IP54 in any installation position
  • First-Open function (NC versions)
  • Compact size, small dimensions
  • LIN and LOG versions
  • 24 V AC and DC Versions
  • All round function indicator
  • Noiseless and maintenance-free
  • Certified by TUV

1 - 8 of 8 Part Numbers
082F1160
082F1160
  • Model - 082F1160
082F1161
082F1161
  • Model - 082F1161
082F1162
082F1162
  • Model - 082F1162
082F1163
082F1163
  • Model - 082F1163
082F1164
082F1164
  • Model - 082F1164
082F1165
082F1165
  • Model - 082F1165
082F1166
082F1166
  • Model - 082F1166
082F1167
082F1167
  • Model - 082F1167
1 - 8 of 8 Part Numbers

Specifications

Brand

Adapter

  • VA 41

Ambient Temperature Range

  • 0° to 60° C (32° to 140° F)

Approvals & Certifications

  • CE EN 60730
  • TÜV (Technischer Uberwachungsverein)
  • UL 60730

Consumption

  • Operating Power: 1 W for 5 mm Versions AC
  • Operating Power: 1.2 W for 6.5 mm Versions AC & DC

Current

  • Maximum

Delay Time

  • Delay when Energized (Heat Up Time): 2 to 3 minutes

Electrical Connectors

  • Connecting Cable: 3 x 0.22 mm² Halogen Free

Electrical Contacts

  • Normally Closed
  • Normally Open

Enclosure, Body Material

  • Polyamid/White

Environmental Protection

  • IP5/III Safety Extra-Iow Voltage

Operating Time

  • Calibration Time (Including First Open for NC): 30 ± 10 minutes

Operating Voltages

  • Control Voltage: 0-10 Vdc

Resistance

  • Input Resistance: 100 kiloohms

Storage Temperature

  • -25° to 65° C (-13° to 149° F)

Supply Voltage

  • Voltage: 24 Vac at 50/60 Hz (-10 % to 20 %) for 5 & 6.5 mm Versions AC
  • Voltage: 24 Vdc (-20 % to 20 %) for 6.5 mm Versions DC

Temperature Range

  • Fluid Temperature: 0° to 100° C (32° to 212° F)
