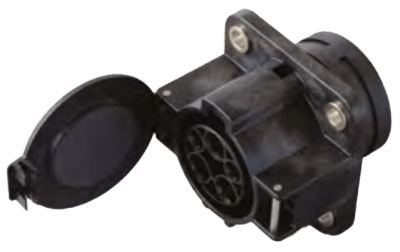

J2IV Electric Vehicle Charging Inlet

Brand: ITT Cannon

ITT’s SAE J1772 e-mobility solutions are built in accordance with SAE J1772 standard for AC Level 1 and Level 2 charging systems.
Features
  • Drain holes at the bottom of the coupler connector/plug - eliminates latch freezing and includes protective shield from small diameter metal penetration to the wiring.
  • Textured coupler connector/plug handle - provides enhanced grip while in use.
  • Optional mating face protection - lanyard dust caps options for coupler connector/plug and spring cap options for coupler connector/plug and spring cap options for inlets provide additional protection when connectors are not in use.

Specifications

Brand

Applications

  • Electric Agriculture Vehicles
  • Electric Motorcycles
  • Electric Watercraft
  • EV Mass Transit Vehicles
  • Fleet Trucks
  • Home EV Charging Units
  • Passenger Vehicles
  • Public Charging Stations
  • Roadside Assistance Trucks

Approvals & Certifications

  • CE
  • PSE-JET
  • UL File E330790, 50, 62

Cap Material

  • Dust Cap: Polyamide (PA) Lanyard (6.1", 4.9")
  • Dust Cap: Stainless Steel Lanyard (6.1", 4.9")

Electrical Rating

  • 20 A
  • 40 A
  • 75 A
  • 80 A

Environmental Protection

  • IP44 Min Per IEC 61851-1 & Tested in Accordance with IEC 60525
  • Typical 3R
  • Typical 3S

Mounting

  • Compression Limiter with Threaded Inserts M5 (Front Mounting)

Power

  • Powering System (Connector Voltage Rating): Single-Phase 120 Vac for Level 1
  • Powering System (Connector Voltage Rating): Single-Phase 240 Vac

Temperature Range

  • -30° to 50° C (-22° to 122° F)

Termination

  • Contact Style / Termination: Crimp
