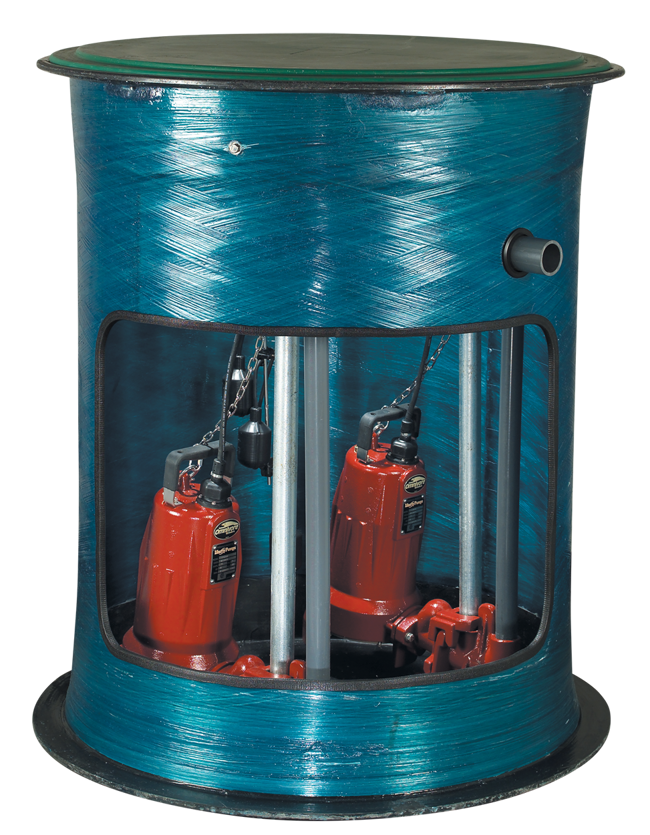

D3648-Series 36" x 48" 2 hp Pre-Assembled Duplex Grinder Package

Brand: Liberty Pumps

For residential and commercial applications, the D3648LSG is a complete factory assembled duplex grinder package featuring LSG200-Series 2 hp Omnivore® grinder pumps.

All internal brackets, floats, guide rail base and discharge piping are pre-installed at the factory saving hours of labor at the job site.
Features
  • Factory assembled duplex grinder package with 36" X 48" fiberglass basin with anti-flotation collar
  • 2 hp Omnivore® grinder pumps available in various voltages
  • Available in single or 2-stage
  • 4" inlet hub
  • Galvanized guide rail piping (stainless optional)
  • Factory pre-assembled guide rail system
  • Factory pre-assembled Schedule 80 PVC discharge piping with ball valves and check valves
  • Fiberglass basin with anti-flotation collar
  • Standard green fiberglass cover, solid (optional black steel, solid)
  • All stainless steel supports and brackets pre-mounted
  • Matching duplex control panel included

Specifications

Discharge Size

  • 2"

Cable Length

  • 25 ft

Basin Dimensions

  • 36" x 48"

Grinder Pump

  • 2 hp

Cover Material

  • Black Steel, Solid
  • Standard Green Fiberglass

Material of Construction

  • Rail Pipe: Galvanized Guide, Stainless Optional
  • Basin: Fiberglass
  • Chain for Pump Lift-out, Supports & Bracket: Stainless Steel
  • Galvanized Guide Rail Piping (Stainless Optional)

Discharge Depth

  • 12" (From Top of Basin)

Total Basin Capacity

  • 211 gal (799 liters)

Volume Per Pump Cycle

  • 53 gal (201 liters)

Alarm Level

  • 31" (79 cm)

On Level

  • 25" (64 cm)

Off Level

  • 13" (33 cm)

Certifications & Approvals

  • cCSAus
  • SSPMA
