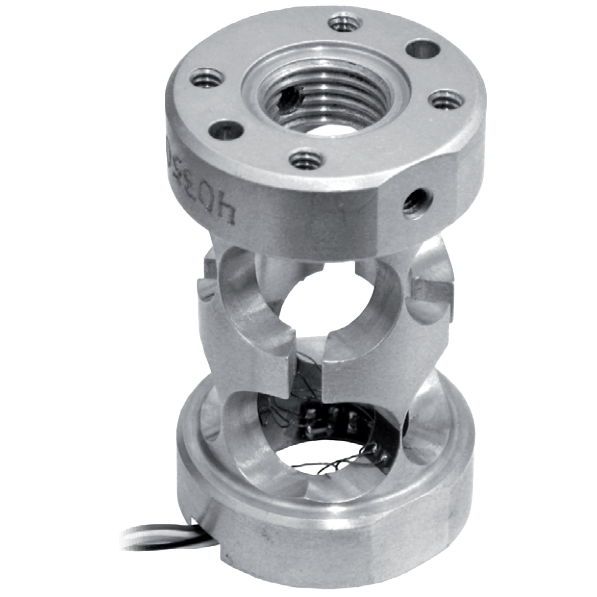

Model XTA OEM Reaction Torque Sensor

Brand: Tecsis

The Model XTA OEM Reaction Torque Sensor has a shaft size 1.20".

 Ranges from 20 in-oz to 100 in-lbs.
Features
  • Wide range of capacities
  • Lightweight

1 - 5 of 5 Part Numbers
XTA-0012
XTA-0012
  • Capacity - 12 In-Lbs
XTA-0050
XTA-0050
  • Capacity - 50 In-Lbs
XTA-0100
XTA-0100
  • Capacity - 100 In-Lbs
XTA-020Z
XTA-020Z
  • Capacity - 20 in-oz
XTA-050Z
XTA-050Z
  • Capacity - 50 in-oz
1 - 5 of 5 Part Numbers

Specifications

Brand

Approvals & Certifications

  • Calibration
  • ISO 9001: 2015 Certified

Compensated Temperature

  • 15° to 72° C (60° to 160° F)

Electrical Connectors

  • 30 AWG, Pig Tail, 6” Long
  • 6” Twisted Leads

Enclosure, Body Material

  • Aluminum

Excitation Voltage

  • 10 V
  • 20 V, Max.

Hysteresis

  • ± 0.2 % of Full Scale Output

Linearity

  • ± 0.2 % of Full Scale Output

Load

  • Safe Overload: 150 % of Capacity

Measuring Range

  • 0 to 100 In/Lbs

Operating Temperature

  • -50° to 93° C (-60° to 200° F)

Output

  • 2 mV/V ± 0.3 mV/V

Repeatability

  • ± 0.05 % of Full Scale Output

Resistance

  • Bridge Resistance: 1,000 ohms

Span & Zero Effect

  • Span Effect: ± 0.002 % of Reading/°F
  • Zero Effect: ± 0.002 % of Full Scale Output/°F

UNF/UNC Connection

  • #6-32 Female UNC-2B
  • 1/2”-20 UNF Female-2B

Zero Balance

  • ± 3 % of Full Scale Output
