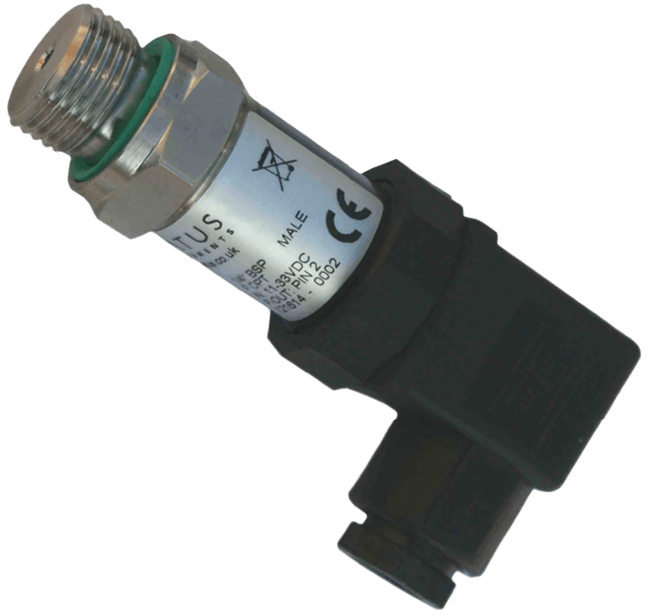

PTX21 Pressure Transmitter

Brand: Status Instruments

The PTX21 pressure transmitters are high accuracy, robust, 2-Wire current output pressure sensing devices.

Sensing is by a piezoresistive element, oil filled, and enclosed in an all welded stainless steel (316L) housing. Silicon filling and Viton seals are available as standard, with other options to order.

Span and Zero potentiometers are provided for fine adjustment or periodic re-calibration.

Gauge, absolute or sealed gauge types are available and all models are reverse polarity protected. Ranges are to Din standard (in ratios of 1, 1.6, 2.5, 4, 6,) e.g. 100, 160, 250, 400, 600 mbar and 1, 1.6 bars etc. with custom calibrations available in all pressure measurement units.

High medium temperatures, up to 150° C (illustrated). Lightning (surge) protection to EN 61000-4-5 and Intrinsic Safety options are all provided.

Specifications

Accuracy

  • Optional: ≤ ± 0.1 % of Full Scale (0.1 to 600 bar)
  • Optional: ≤ ± 0.25 % of Full Scale (0 to 600 bar)
  • Standard: ≤ ± 0.5 % of Full Scale (0 to 600 bar)

Approvals & Certifications

  • ATEX I/II MI/IG EEx IIC T3 to T6
  • EMC EN 61000-6-3, EN 61000-6-2, EN 61000-4-5 Surge

BSP Connection

  • 1/2” BSP Male
  • 1/4” BSP Female
  • 1/4” BSP Male
  • 1-1/4” BSP Female
  • 2-1/2” BSP Male
  • 5-1/4” BSP Male
  • 7-1/2” BSP Male

Burst Pressure

  • > psi: 12,330 (kPa: 85,000, bar: 850) - Max.
  • > psi: 2,901 (kPa: 20,000, bar: 200) for Ranges to 25 bar

Electrical Connectors

  • DIN 43650

Electrical Protection

  • Lightning Protection
  • Reverse Polarity

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Hazardous Area
  • Intrinsically Safe
  • IP68

Fill Material

  • Silicone

Operating Temperature

  • Optional: -25° to 85° C (-13° to 185° F)
  • Standard: 0° to 70° C (32° to 158° F)

Output

  • 1 W
  • 100 mA
  • 4-20 mA, 2-Wire

Overpressure & Static Pressure Limits

  • Overpressure: 3 times Full Scale for psi: 29 to 8,702 (kPa: 200 to 60,000, bar: 2 to 600)

Pressure Range

  • bar: 0 to 600
  • kPa: 0 to 60,000
  • psi: 0 to 8,700

Pressure Type

  • Absolute
  • Gauge
  • Sealed Gauge

Process Connection Style

  • Flush Typical

Process Temperature

  • 150° C (302° F)

Seat / Seal Material

  • Seal: Viton

Sensor, Probe Type

  • Piezoresistive

Supply Voltage

  • 10-30 Vdc, Voltage Influence < 0.1 % of Full Scale (PTX21X)
  • 30 V
  • 9-33 Vdc
