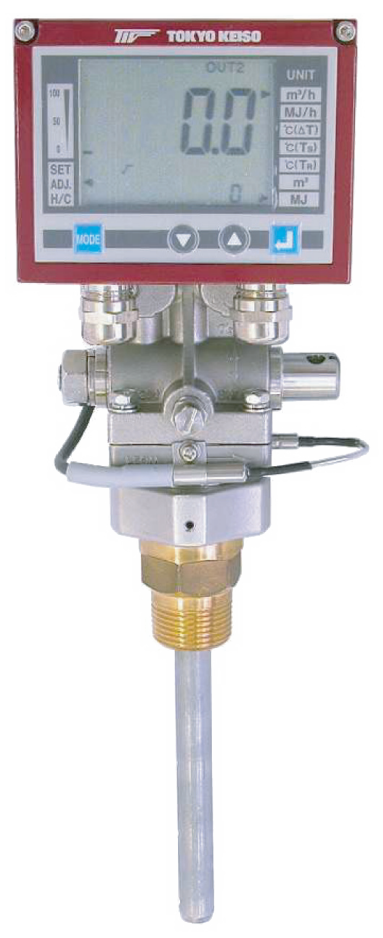

CDT3000 Series Multi-Digital Calorie Monitor

Brand: Tokyo Keiso Co, Ltd
Add Product to My Catalog

The CDT3000 calorie monitor consists of a pitot tube type flow element with a built-in temperature sensor and a differential pressure instrument equipped with root extraction and calorie calculation functions. By inputting an external temperature signal and calculating temperature difference, it indicates and outputs thermal flow and totalized calorie in addition to flow rate. Applicable pipe size ranges from 20 to 450 mm.
Features
  • Simultaneous measurement of both flow and temperature saves your installation cost
  • Negligible small pressure loss
  • Selectable from wide variety of flow meter ranges suitable for your applications
  • Applicable for both horizontal and vertical pipes
  • By inputting temperature signal on the fluid feed line it allows thermal flow measurement and totalized calorie calculation to serve as a calorie monitor for your energy conservation
  • Easy to read with a large LCD display

Specifications

Brand

Accuracy

  • ± 5 % of Full Scale

Approvals & Certifications

  • ISO 9001

BSP Connection

  • 3/4” BSPT Male

Consumption

  • 2 VA or Less

Display

  • 3-1/2-Digits

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • IP65

Power Supply

  • 24 Vdc ± 10 %

Documentation

Data Sheets
