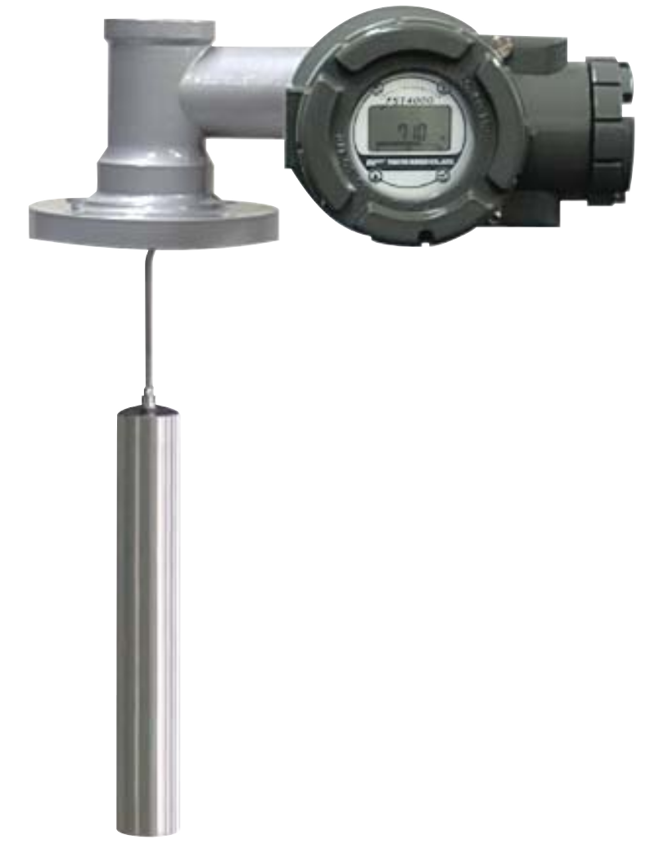

FST4000 Displacer Type Level Transmitter

Brand: Tokyo Keiso Co, Ltd
Add Product to My Catalog

FST4000 is a torque tube displacement type level indicating transmitter with intelligent data processing function. Through 18 years of field proven experiences accumulated by the existing model FST-3000, FST4000 has intensified its reliability by adding such features as SIL2 compatible functional safety, ATEX flameproof and field bus communication of FOUNDATION Fieldbus.

Specifications

Brand

Approvals & Certifications

  • EN 5501
  • SIL 2

Approvals & Certifications

  • ATEX
  • EMC
  • IEC 60529, IECEx Exd II CT6 to T1, 60079-0, -1, -11, 61010-1, 61326-2-1, 61000-4-2, -4, -6
  • KOSHA
  • NEPSI
  • PED
  • TIIS Exd II CT6

Communication

  • FOUNDATION Fieldbus
  • HART

Enclosure, Body Material

  • Bluff Body (Delta Shaped) - 316 Stainless Steel (SUS316 or SCS14A)
  • Bonnet: Cast Steel (SCPH2)
  • Cast Stainless Steel (SCS13A, 14A, 16A)
  • Displacer, Chamber: 304 Stainless Steel
  • Displacer: PVC
  • Torque Tube, Chamber, Displacer: 316L Stainless Steel (316L Stainless Steel)
  • Torque Tube, Displacer: Monel
  • Torque Tube: Hastelloy C-276 (NW0276)
  • Transmitter: Aluminum Die Cast (ADC12)

Environmental Protection

  • IP67

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - 150# ASME
  • 1-1/2" (DN 40) - 1500# (ASME, JPI)
  • 1-1/2" (DN 40) - 2500# (ASME, JPI)
  • 1-1/2" (DN 40) - 300# ASME
  • 1-1/2" (DN 40) - 600# (ASME, JPI)
  • 1-1/2" (DN 40) - JIS 10K
  • 1-1/2" (DN 40) - JIS 30K
  • 1-1/2" (DN 40) - JIS 63K

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150#
  • 2" (DN 50) - 1500# (ASME, JPI)
  • 2" (DN 50) - 2500# (ASME, JPI)
  • 2" (DN 50) - 300#
  • 2" (DN 50) - 600#
  • 2" (DN 50) - JIS 10K
  • 2" (DN 50) - JIS 20K
  • 2" (DN 50) - JIS 63K

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150# ASME
  • 3" (DN 80) - 1500# (ASME, JPI)
  • 3" (DN 80) - 2500# (ASME, JPI)
  • 3" (DN 80) - 300# ASME
  • 3" (DN 80) - 600# ASME
  • 3" (DN 80) - JIS 10K
  • 3" (DN 80) - JIS 30K
  • 3" (DN 80) - JIS 63K

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150# ASME
  • 4" (DN 100) - 1500# (ASME, JPI)
  • 4" (DN 100) - 2500# (ASME, JPI)
  • 4" (DN 100) - 300#
  • 4" (DN 100) - 600#
  • 4" (DN 100) - JIS 10K
  • 4" (DN 100) - JIS 30K
  • 4" (DN 100) - JIS 63K

Output

  • 4-20 mA DC

Documentation

Data Sheets
