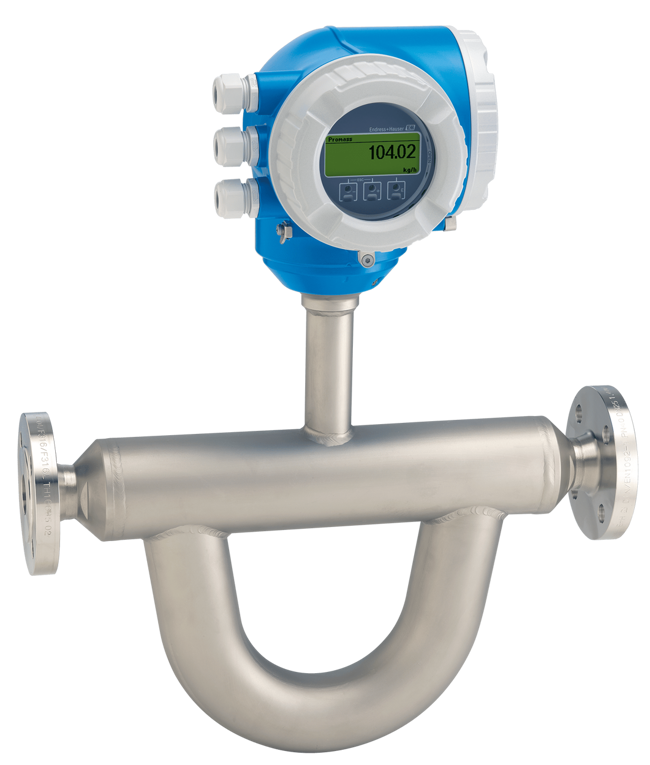

Proline Promass Q 300 Coriolis Flowmeter
Brand: Endress+Hauser AG- Measuring principle operates independently of physical fluid properties such as viscosity or density
- Highest measurement performance for custody transfer, density and under tough process conditions
- Mass flow: measurement error ±0.05 % (PremiumCal)
- Density: measurement error ±0.2 kg/m3
- High turndown due to low pressure loss/zero point
- Compact dual-compartment housing with up to 3 I/Os
- Backlit display with touch control and WLAN access
- Remote display available
- Secured measuring quality – unmatched accuracy of mass flow, volume flow and density
- Optimized performance for liquids with entrained gas – MFT (Multi-Frequency Technology)
- Fewer process measuring points – multivariable measurement (flow, density, temperature)
- Space-saving installation – no in/outlet run needs
- Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses
- Reduced complexity and variety – freely configurable I/O functionality
- Integrated verification – Heartbeat Technology

803B1F-AAIBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B1F, DN150 6"
- Approval, Transmitter + Sensor - Non-hazardous Area
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B1F-BADBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B1F, DN150 6"
- Approval, Transmitter + Sensor - ATEX+IECEx; Z0/1, Z21, Ex de IIB/IIIC
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B1H-AAIBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B1H, DN100 4"
- Approval, Transmitter + Sensor - Non-hazardous Area
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B1H-BADBAAAFASAAASCA2D
Preselection - Promass Q 300, 8Q3B1H, DN100 4"
Approval, Transmitter + Sensor - ATEX+IECEx; Z0/1, Z21, Ex de IIB/IIIC
Power Supply - 100-230 Vac/24 Vdc
Output; Input 1 - 4-20 mA HART
Output; Input 2 - W/O
Output; Input 3 - W/O
Display; Operation - 4-line Illum., Touch Control
Housing - Alu, Coated
Electrical Connection Thread - NPT 1/2
Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
Device Model - 2
Options - No

803B25-AAIBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B25, DN25 1"
- Approval, Transmitter + Sensor - Non-hazardous Area
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B25-BADBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B25, DN25 1"
- Approval, Transmitter + Sensor - ATEX+IECEx; Z0/1, Z21, Ex de IIB/IIIC
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B2F-AAIBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B2F, DN250 10"
- Approval, Transmitter + Sensor - Non-hazardous Area
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B2F-BADBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B2F, DN250 10"
- Approval, Transmitter + Sensor - ATEX+IECEx; Z0/1, Z21, Ex de IIB/IIIC
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B2H-AAIBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B2H, DN200 8"
- Approval, Transmitter + Sensor - Non-hazardous Area
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B2H-BADBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B2H, DN200 8"
- Approval, Transmitter + Sensor - ATEX+IECEx; Z0/1, Z21, Ex de IIB/IIIC
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B50-AAIBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B50, DN50 2"
- Approval, Transmitter + Sensor - Non-hazardous Area
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No

803B50-BADBAAAFASAAASCA2D
- Preselection - Promass Q 300, 8Q3B50, DN50 2"
- Approval, Transmitter + Sensor - ATEX+IECEx; Z0/1, Z21, Ex de IIB/IIIC
- Power Supply - 100-230 Vac/24 Vdc
- Output; Input 1 - 4-20 mA HART
- Output; Input 2 - W/O
- Output; Input 3 - W/O
- Display; Operation - 4-line Illum., Touch Control
- Housing - Alu, Coated
- Electrical Connection Thread - NPT 1/2
- Meas. Tube Material, Wetted Parts Surface - Stainless Steel, Not Polished
- Process Connection - Cl.150 RF, 1.4404/316/316L, Flange ASME B16.5
- Calibration Flow - 0.10% Mass 5-point, Traceable ISO/IEC 17025
- Device Model - 2
- Options - No
Specifications
Brand
Measuring Principle
- Coriolis
Product Headline
- Innovative Specialist for challenging applications with a compact, easily accessible transmitter
- Highest measurement performance for custody transfer, density and under tough process conditions
Sensor Features
- Optimized performance for Liquids with entrained gas - MFT (Multi-Frequency Technology)
- Fewer process measuring points - multivariable measurement (Flow, density, Temperature)
- Space-saving installation - no in-/outlet run needs
- Mass flow: measurement error ± 0.05 % (PremiumCal)
- Density: measurement error ± 0.2 kg/m³
- High turndown due to Low Pressure loss/zero point
Transmitter Features
- Full access to process and diagnostic information - numerous, freely combinable I/Os and fieldbuses
- Reduced complexity and variety - freely configurable I/O functionality
- Integrated Verification - Heartbeat Technology
- Compact Dual-Compartment housing with up to 3 I/Os
- Backlit display with touch Control and WLAN access. Remote display available
Nominal Diameter Range
- DN 25 to 250 (1 to 10")
Wetted Materials
- Measuring Tube: 1.4404 (316/316L) Stainless Steel for cryogenic applications
- Connection: 1.4404 (316/316L)
Measured variables
- Mass Flow
- Density
- Temperature
- Volume Flow
- Corrected Volume Flow
- Reference Density
- Concentration
Maximum Measurement Error
- Mass flow (Liquid): ± 0.10 % (Standard), 0.05 % (Option)
- Volume flow (liquid): ± 0.10 %
- Mass flow (Gas): ± 0.25 %
- Density (Liquid): ± 0.2 kg/m³ (standard), ± 0.1 kg/m³ (option)
Measuring Range
- 0 to 240,000 kg/h (0 to 88,183 lb/min)
Maximum Process Pressure
- PN 100, Class 600, 63K
Medium Temperature Range
- Option: -196° to +150° C (-321° to +302° F)
- Standard: -50° to +205° C (-58° to +401° F)
Ambient Temperature Range
- Option: -50° to +60° C (-58° to +140° F)
- Standard: - 40° to +60° C (-40° to +140° F)
Sensor Housing Material
- 1.4404 (316L), Highest corrosion resistance
Transmitter Housing Material
- AlSi10Mg, Coated, 1.4409 (CF3M) similar to 316L Stainless Steel for hygenic transmitter Design
Degree of Protection
- IP66/67
- Type 4X Enclosure
- IP69
Display/Operation
- 4-line backlit display with touch Control (Operation from outside)
- Configuration via local display and Operating tools possible
- Remote display available
Outputs
- 3 outputs
- 4-20 mA HART (Active/passive)
- 4-20 mA WirelessHART
- 4-20 mA (Active/Passive)
- Pulse/frequency/switch output (Active/passive)
- Double pulse output (Active/passive)
- Relay Output
Inputs
- Status Input
- 4-20 mA Input
Digital Communication
- HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS-485, PROFINET, PROFINET over Ethernet-APL, EtherNet/IP, OPC-UA
Power Supply
- DC 24 V
- AC 100 to 230 V
- AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals
- ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC
Product Safety
- CE, C-tick, EAC Marking
Functional Safety
- According to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological Approvals and Certificates
- Calibration performed on accredited calibration facilities (acc. to ISO /IEC 17025)
- Heartbeat Technology complies with the Requirements for measurement traceability according to ISO 9001: 2015 - Section 7.1.5.2 a (TÜV SÜD attestation)
- MI-005 Liquids other than water (Hydrocarbons, Liquified gases, Cryogenic Liquids)
- OIML R117 (Liquids other than water, Liquified Gases, Cryogenic Liquids)
- NTEP (Liquids other than water, Cryogenic Liquids)
- MC (Liquids other than water, Cryogenic Liquids)
Marine Approvals and Certificates
- LR approval, DNV approval, ABS approval, BV approval, CCS approval
Pressure Approvals and Certificates
- PED, CRN, AD 2000
Material Certificates
- 3.1 material
- NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
Hygienic Approvals and Certificates
- 3-A, EHEDG, cGMP
