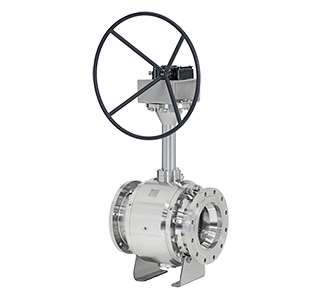

C91 Cryogenic Trunnion Mounted Ball 3 Piece
Brand: Habonim Industrial Valves & Actuators
Features
- 3-piece robust, forged valve
- Double block & bleed
- Blowout-proof robust stem design
- Bi-directional as standard
- API 6D certified (API monogram #6D-1278)
- Fire safe designed to API 6FA, API 607, ISO 10497
- Comply with NACE MR0175/ISO 15156
- Corrosion resistant low friction bearings
- Double Piston Effect or Single Piston Effect seat design
- Mixed SPE and DPE seats design also available
- Integral top-works direct mounting pad to ISO 5211
- 6” and larger valves are equipped with lifting lugs
- 8” and larger valves can be equipped with vent and drain valves (Optional)
- Antistatic grounding between ball, stem & body
Specifications
Size
- 2” to 12” (DN 50 to DN 300)
Pressure Range
- Class 150
Body Material
- Steel
Seal Material
- PCTFE
- TFM
- Graphite
End Connection Type
- Flange
- Welded End
