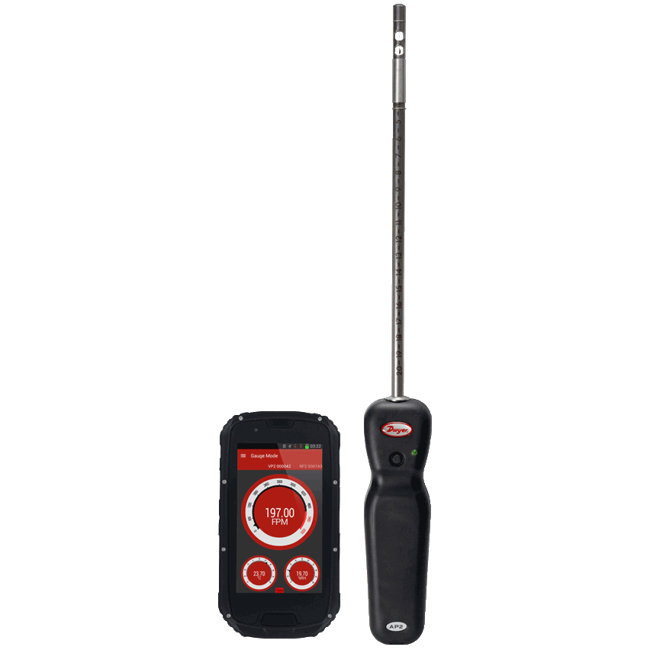

Series AQTIA Air Quality Test Instrument Kit
Brand: Dwyer Instruments, LLCThe Series AQTIA Air Quality Test Instruments combine the versatile Model UHH2 handheld base with various compatible probes and modules.
The versatile combination provides a line of instruments capable of streamlining a technician’s everyday testing by combining all into one product and using Bluetooth SIG, Inc. wireless technology for ease of use.
Features- Rugged IP68 housing withstands 1.5 meter drop test
- Wireless measurement of pressure, air velocity, air flow, temperature, and humidity
1 - 12 of 23 Part Numbers
AQTIA-AP2
- Parameters - Velocity/Temperature
- Range - 0 to 6000 FPM, -20° to 212° F
- Kit - Not Required
AQTIA-AP2-PKIT
- Parameters - Velocity/Temperature
- Kit - Required
AQTIA-RP2
- Parameters - Humidity/Temperature
- Range - 0 to 100% RH, -20° to 140° F
AQTIA-RP2-PKIT
- Parameters - Humidity/Temperature
- Kit - Required
AQTIA-VP2
- Parameters - Velocity/RH/Temperature
AQTIA-VP2-PKIT
- Parameters - Velocity/RH/Temperature
- Kit - Required
AQTIA-WDPM
- Parameters - Pressure
- Kit - Not Required
AQTIA-WDPM-002
- Parameters - Pressure
- Range - ± 2 Inches WC (498.18 Pa)
- Kit - Not Required
AQTIA-WDPM-002-PKIT
- Parameters - Pressure
- Range - ± 2 Inches WC (498.18 Pa)
- Kit - Required
AQTIA-WDPM-005
- Parameters - Pressure
- Range - ± 5 Inches WC (1245.4 Pa)
- Kit - Not Required
AQTIA-WDPM-005-PKIT
- Parameters - Pressure
- Range - ± 5 Inches WC (1245.4 Pa)
- Kit - Required
AQTIA-WDPM-010
- Parameters - Pressure
- Range - ± 10 Inches WC (2490.9 Pa)
- Kit - Not Required
1 - 12 of 23 Part Numbers
Specifications
Brand
Approvals & Certifications
- CE
Display
- 4.3” QHD Gorilla Glass Touch Screen, 960 x 540
Environmental Protection
- IP68
Flow Rate
- 0 to 6000 fpm (0 to 30 mps)
Humidity
- 0 to 100 % Relative Humidity
- 5 to 95 % Relative Humidity
Materials of Construction
- 160F Straight, 160-18 316 Stainless Steel Pitot Tube
NACE & NIST
- NIST
Operating Temperature
- -20° to 60° C (-4° to 140° F)
Power Requirement
- 2000 mAh Lithium Ion Battery
Pressure Range
- Inches WC: ± 2 to ± 350
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Temperature Range
- -29° to 100° C (-20° to 212° F)
- Building Commissioning
- Building Balancing
- Testing HVAC Equipment Performance
