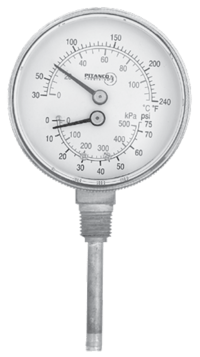

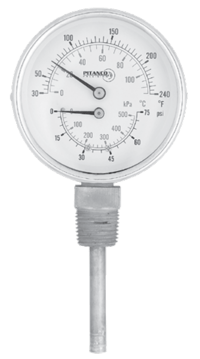

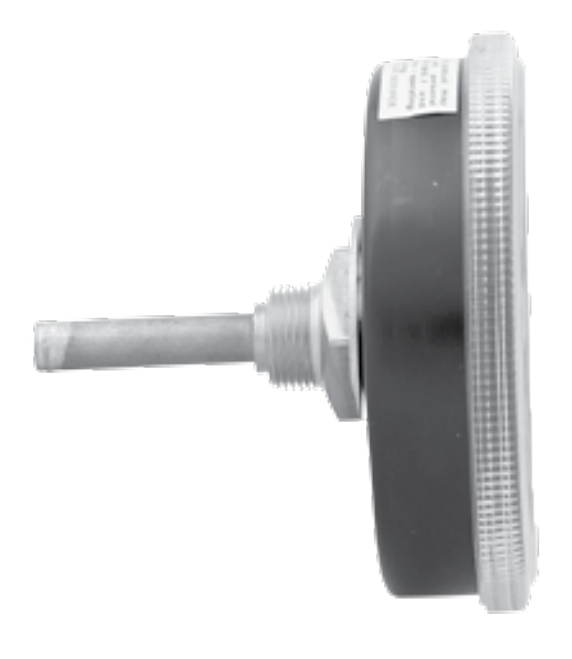

Model TRI Tridicator
Brand: Pitanco Precision
Water heaters, boilers, hot water furnaces, etc. Where it is necessary to measure both temperature and pressure with the same instrument.
Specifications
Brand
Case
- Steel, Painted Black
Dial
- White Aluminum, psi and °F in Black, kPa and °C in Blue
Lens & Cover
- 2-1/2” (63 mm) Acrylic Threaded Lens Cover
- 3” (80 mm) Polycarbonate Lens and Chrome-Plated Ring
Pointer
- Anodized Black Aluminum
Movement
- Brass (Pressure)
- Bimetal Coil (Temperature)
Stem
- Brass
Connection
- 2-1/2” (63 mm) 1/4” NPTM
- 3” (80 mm) 1/2” NPTM
Recommended Pressure & Temperature
- Maximum 67 % of Full Scale Value
Ambient Temperature
- 25° to 125° F / -5° to 50° C
Accuracy
- ASME B40.100 (B40.1)
- B40.200 (B40.4), Grade B ± 2 % CAN/CGSB - 14.4
