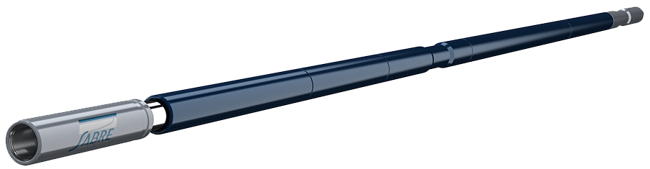

Slide PRO Friction Reduction Tool
Brand: Sabre Downhole Tools LtdThe Slide PRO uses a vigorous vibrating design to reduce the friction between the bore hole and the drill string in order to maximize weight transfer to the drill bit, increase ROP, and reduce stick‐slip.
Features- Enhances tool face control
- Reduces stick‐slip
- Prevents weight stacking
- Less drill pipe compression
- Weight transfer extends bit life
- Reduces drag and bit bounce
- Longer laterals and faster ROP
- Compatible with all MWD systems
- Harmonic oscillation along drill string axis
Specifications
Brand
Overall Length w/ Safety Joint
- 16.7 ft (5.09 m)
Weight
- 987 lbs (447 kg)
Recommended Flow Range
- 250 - 350 gpm (950 - 1325 Lpm)
Temperature Range
- 300° F (150° C)
Operating Frequency
- 7 - 10 Hz
Operational Pressure Drop Generated
- 400 - 650 psi (2758 - 4882 kpa)
Maximum Pull
- 500,000 lbs (222,000 daN)
Connections
- DS40
- High Torque (HT) Double Shoulder Connections
