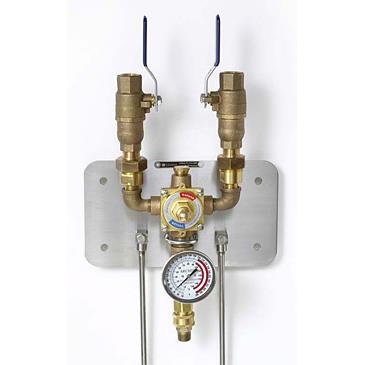

HCMX-TC Thermostatically Controlled Mixing Station

Brand: Archon Industries

The Model HCMX-BR-TC is a thermostatically controlled mixing valve assembly that delivers constant temperature water.

It automatically compensates for fluctuations in either incoming hot and cold water temperature and/or pressure.

A liquid filled thermostat and a stainless steel control valve guard against unexpected hot or cold water spikes and proportion the water flow to maintain a constant outlet temperature +/- 3ºF over the range of 80 to 160ºF for up to 10 gallons per minute at a differential pressure of 40 psi, with a maximum hot water supply of 180ºF.

Mixed water temperature is adjusted by turning a set-screw and is indicated on a dial thermometer.

The housing is bronze and wetted parts are bronze, stainless steel, PTFE and buna rubber.

The assembly includes an inlet shut-off valve and a check valve with ¾” NPT union connection on both the hot and cold water legs.

The HCMX-BR-TC is available with the following optional components: SS wall mounting plate, SS hose rack, hand held spray nozzle, automatic shut-off spray lance, and a variety of hot water rated hoses.
Features
  • Accurate Control of Temperature from 80ºF / 27ºC to 160ºF / 71ºC
  • Maintains Temperature to + / - 3ºF
  • Maximum Water Temperature of 160ºF / 71ºC
  • Adjustable Temperature Limit Stop for Safety
  • Self Adjusts for Temperature or Pressure Variations
  • Maximum Working Pressure to 125 psi
  • Color Coded Temperature Dial
  • Bronze Body with Replaceable Corrosion-resistant Components
  • The Piston and Liner are Stainless Steel
  • Bronze and Stainless Steel Construction
  • 3/4” High Flow Unit 10-12 GPM Standard
  • One Year Warranty
