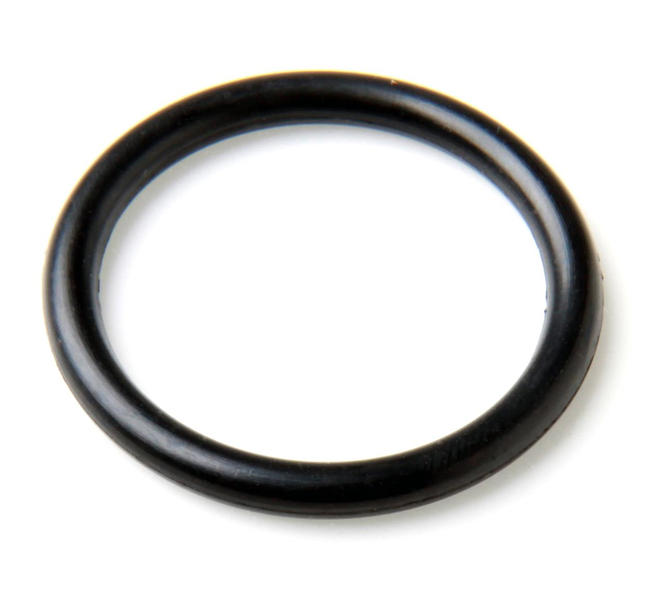

Fluorocarbon 75 Durometer O-Ring, Low & High Temperature (VM125-75)
Brand: Parker HannifinParker's Fluorocarbon 75 Durometer O-Ring, Low & High Temperature (VM125-75) has best in class compression set resistance for a low temperature, GLT type of fluorocarbon material.
Formulated for the stringent high temperature requirements of AMS 7287, the material also exhibits outstanding HTS turbine oil compatibility, outstanding jet fuel compatibility, and outstanding hydraulic oil resistance.
Features- Heat resistance - Up to 204°C (400°F) and higher temperatures with shorter life expectancy
- Cold flexibility - Down to -40°C (-40°F) for static applications and -26°C (-15°F) for dynamic applications
Specifications
Brand
Approvals & Certifications
- MIL/Aero
Color
- Black
Fluid Compatibility
- Broad Range
Internally Lubed
- No
Markets
- General
Maximum Working Temperature (°F)
- 400° F
Meets Certifications
- AMS-R-83485, AMS7287
Minimum Working Temperature (°F)
- -40° F
Nominal Hardness
- 75
Nominal Hardness Range
- > 70
Polymer Family
- Fluorocarbon (FKM, FPM)
Region of Origin
- North America
Thermal Application (°F)
- Low & High Temperature (250° F)
Documentation
Data Sheets
- Compound Shrink Class pdf 371 KB
- O Ring Coatings Advanced Coating Methods for All of Your Application Needs ORD 5757 pdf 1.5 MB
- O Ring Division Frequently Asked Questions pdf 118 KB
- Parker O Ring Handbook ORD 5700 pdf 5.9 MB
- Parker Tracking System and RFID Technology pdf 72 KB
- Shelf Life pdf 79 KB
- Technical Glossary pdf 132 KB
- VM125 Material Test Report pdf 45 KB
