RCI-200-SER Remote Control Signal Interface
Brand: Pribusin, IncThe RCI-200-SER is a bi-directional remote communication system that exchanges the status of 2 dry contact inputs and 2 analog inputs between a master and remote unit or a PC.

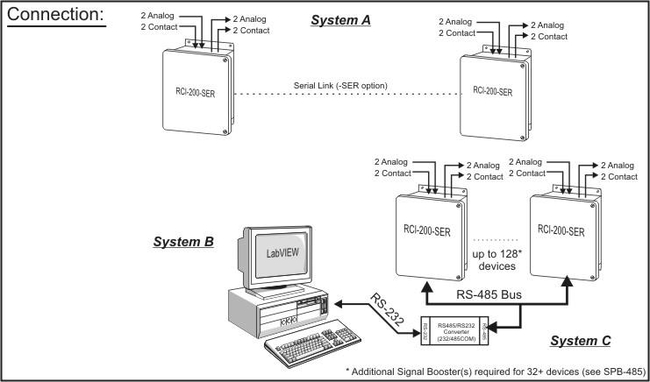

A basic system consists of:
A) one master station and one remote station each with 2 dry contact and 2 analog inputs and 2 'C' relay contact and analog outputs.
OR
B) several remote stations and one PC.
In system A), the master unit can interrogate one remote.
In system B), a PC can interrogate several remote units.
The RCI-200-SER may also be used as a remote in a multi-remote system where 2, 4 or 8 remote units at different sites may communicate with one central master. The RCI-800-SER may be used to serve as the master.
Features- Bi-Directional Communication via serial (SER), Lease Lined (FSK) or Dial-up (MDM)
- 2 Analog Inputs (0-20mA)
- 2 Analog Outputs (0-20mA)
- 2 Dry Contact Inputs
- 2 Form 'C' Relay Contact Outputs
- No Calibration or Setup Required
- Microprocessor Controlled for High Accuracy
- Power: 117 VAC 50/60 Hz (Optional 24 VDC)
- High Noise Rejection
Specifications
Brand
Approvals & Certifications
- CSA C22.2 No. 60950-1-07
- ETL 3118354: UL 60950-1-2007
Baud Rate
- 2400 BAUD Typical, 9600, 14.4K Available
Enclosure
- NEMA 4X (NEMA 12 Available as an Option)
Operating Temperature
- -20° to +50° C
Power
- 117 Vac, 60/50 Hz, 24 Vdc Available
Relay Contacts
- 10 A 1/8 hp at 125 Vac
- 6 A 1/8 hp at 277 Vac
Transmission Medium
- RS-232, RS-485
