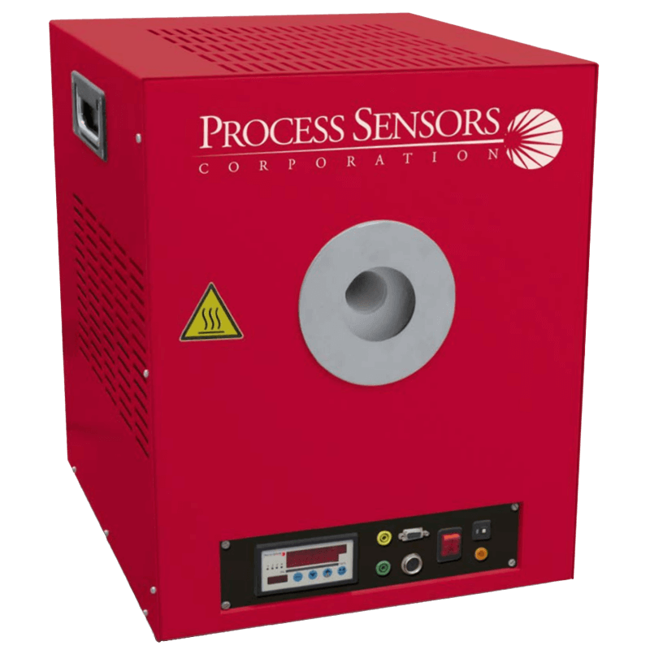

BBS1500-40 Blackbody Calibration Source
Brand: Process Sensors Corporation
Features
- Wide/adjustable temperature range from 250 to 1,500° C (482 to 2,732° F) with 40 mm (1.57") aperture
- For precise calibration of pyrometers with spot sizes up to 24 mm
- Set point in 1° increments with a temperature stability of better than 0.5° over 30 min
- Fast heat up time - 1,450° C in 40 minutes
- Cylindrical cavity for uniform temperature radiation
- Set point and actual temperature values are displayed simultaneously
- Auxiliary connections
- Interface for communication via PC with software
- Pyrometer Analog output for Analog calibration
- Provides 24 Vdc power to operate the Metis, Sirius or Diadem pyrometers
- Cooling fan for safe enclosure operating temperature
- Traceability to International Temperature Standard ITS 90 when using a Diadem transfer standard pyrometer
Specifications
Accuracy
- Display Accuracy: ± 0.5 %
Ambient Temperature Range
- 0° to 35° C (32° to 95° F)
Approvals & Certifications
- CE According to EU Directives for Electromagnetic Immunity
Control Functions Characteristics
- Method of Control: PID Control
Current
- Device Fuse: 16 A Slow Blow Fuse
Display
- 7-Segment LED, 13 mm, Red
- Dot Matrix 5 mm, Red
Enclosure, Body Material
- Steel, Powder-Coated
Humidity
- Relative Humidity, Non-Condensing
Materials of Construction
- Cavity: Silicon Carbide
Power
- 24 Vdc
Power Supply
- 200-240 Vac, 50/60 Hz, Max.
Resolution
- Temperature Resolution: 1° C
Size
- Aperture: 1.57” (40 mm)
- Spot Size: 0.39” to 0.94” (10 to 24 mm)
Stability
- < ± 0.5 K over 30 minutes
Storage Temperature
- -20° to 50° C (-4° to 122° F)
Temperature Effect
- Spot Size Ø 10 mm: ± 0.5° C
- Temperature Uniformity Spot Size Ø 24 mm: ± 1.5° C
Temperature Range
- 250° to 1,500° C (482° to 2,732° F)
Update Time
- 40 minutes to Reach 1,450° C (2,642° F) as Additional 20 minutes to Reach Specified Stability
