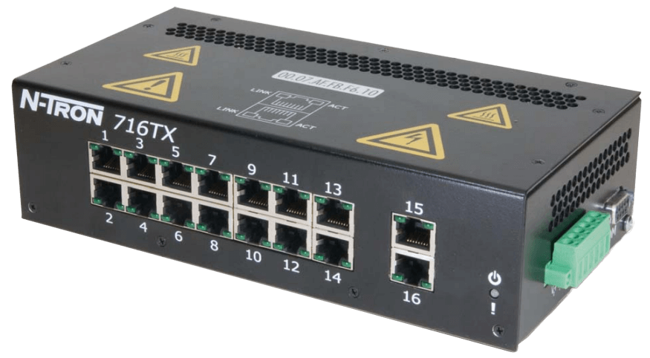

716TX-HV Industrial Ethernet Switch

Brand: Red Lion Controls

The N-TRON 716TX-HV Industrial Ethernet Switch offers outstanding performance and ease of use.

It is a fully managed switch, ideally suited for connecting Ethernet enabled devices in railway, industrial and security applications.
Features
  • Sixteen 10/100BaseTX RJ-45 ports
  • -40° to 70° C (-40° to 158° F) operating temperature
  • ESD and surge protection diodes on all ports
  • Auto Sensing 10/100BaseTX, Duplex, and MDIX
  • Store and forward technology
  • Rugged DIN-Rail Enclosure
  • Redundant power inputs (40-160 Vdc)
  • Configurable alarm contact & bi-color fault status LED

1 - 4 of 4 Part Numbers
700-PM
700-PM
  • Product - Panel Mount Kit
716TX-HV
716TX-HV
  • Product - Sixteen 10/100BaseTX Ports
NTPS-48-2
NTPS-48-2
  • Product - DIN-Rail Power Supply 48 V at 2 A
URMK
URMK
  • Product - Universal Rack Mount Kit
1 - 4 of 4 Part Numbers

Specifications

Applications

  • Industrial Applications
  • Railways
  • Security

Approvals & Certifications

  • CE
  • FCC CFR 47, Part 15, Subpart B, Class A, ICES-003

Approvals & Certifications

  • EN 55022, 61000-4-3/4/5/6, 50155 (Railway Applications), 60950-1
  • GS (Geprufte Sicherheit)

Circuit Protection

  • ESD Protection
  • Surge

Communication

  • EtherNet/IP

Electrical Connectors

  • 10/100Base-TX: Sixteen (16) RJ45 Copper Ports

Humidity

  • 5 to 95 % Relative Humidity, Non-Condensing

Indication

  • LED

Input

  • 160 mA - Max.
  • 40-160 Vdc (Regulated)

Mounting

  • DIN Rail Mounting
  • Panel Mounting Kit
  • Universal Rack Mounted Kit

Operating Temperature

  • -40° to 70° C (-40° to 158° F)

Power Supply

  • DIN Rail: 48 V at 2 A

Shock

  • 200 G at 10 milliseconds (Bulkhead Mounted)

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Vibration

  • 50 G, 5-200 Hz, Triaxial (Bulkhead Mounted)

Wiring

  • Wiring Clearance Front: 4” (10.16 cm)
  • Wiring Clearance Side: 1” (2.54 cm)
