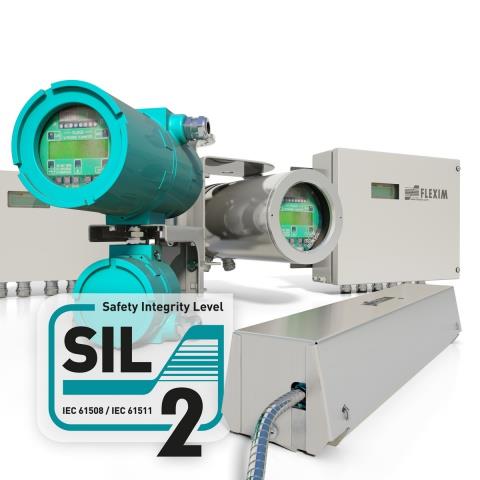

Fluxus SIL F Functional Safety Flow Meter
Brand: FLEXIMFunctional Safety approved Flowmeter.
The FLUXUS non-invasive ultrasonic flow meters have always been the first choice when it comes to maintaining accurate measurements in harsh conditions – e.g. during the flow measurement of aggressive, toxic or highly explosive media, at high temperatures or high pressure.
FLUXUS measures from the safe side: From outside.
The clamp-on ultrasonic transducers are simply mounted on the outside of the pipe. Without any risk of leak and during ongoing operation.
The ultrasonic measuring method doesn’t need any wetted devices, does not pose any risk of clogging and is not subjected to mechanical stress which means it is practically wear-free.
As the wetted parts of inline measuring devices are not subject to the Failure Mode Effects and Diagnostics Analysis (FMEDA), they are not included in the scope of certification - presenting a safety risk.
On the other hand, the SIL 2 certification of the FLUXUS non-invasive flow meter includes the entire measuring system -the measuring transmitters and transducers.
It also includes the patented Wave Injector mounting fixture for extreme temperatures, allowing the non-invasive flow measurement at liquid temperatures from as low as -275 °F up to +1100 °F. FLEXIM also offers special radiation-resistant transducers for use in the nuclear industry.
Safety without interruption.
The advantages of FLEXIMs non-invasive flow measurement technology pay off all the more over the entire lifecycle:
There is never any need to interfere with the pipeline system when carrying out periodic inspections.
The self-diagnosis functions of the FLUXUS mean retests can be carried out easily to accurately assess the reliability and quality of the measurement.
Even more detailed functional tests such as alarm tests or tests for monitoring compliance with measuring accuracy requirements never interfere with plant availability.
Specifications
Brand
Communication Protocol
- Modbus RTU
Data Logger Capacity
- > 100,000 Values: All Quantities, Summed Measurings & Diagnostics
Degree of Protection Transducers
- Up to NEMA 4X (IP68), Radiation Resistant Transducers Available
Flow Velocity Range
- 0.03 to 80 ft/sec
Fluxus ADM8X27
- FM Class I, Div. 1, ATEX, IECEx Zone 1 Approval, IP66, Aluminum or Stainless Steel Housing Variants - Suitable for Offshore Use
Fluxus F70X
- FM Class I, Div. 2, ATEX, IECEx Zone 2 Approval (Optional), IP66, Aluminum or Stainless Steel Housing Variants
Measurement Accuracy (Field Calibrated)
- ± 0.5 % of Reading ± 0.01 m/sec
Measurement Accuracy (Standard)
- ± 1.0 % of Reading ± 0.03 ft/sec with 5-Point NIST Calibration
Measuring Quantities
- Volume Flow Rate, Mass Flow Rate, Flow Velocity
Operating Temperature of the Transducers at Pipe Wall
- -40° to 390° F (-275° to 1100° F with High Temperature WaveInjector Mounting Fixture)
Operating Temperature of the Transmitter
- 14° to 140° F
Pipe Diameter Range
- 1/4” to 500”
Power Supply
- 100 to 240 Vac / 50/60 Hz or 20 to 32 Vdc
Repeatability
- ± 0.5 % of Reading ± 0.03 ft/sec
Documentation
Brochure
Specifications
- FLUXUS SIL F7 Technical Specification DE pdf 64 KB
- FLUXUS SIL F7 Technical Specification EN pdf 63 KB
- FLUXUS SIL F7 Technical Specification FR pdf 64 KB
- FLUXUS SIL F7 Technical Specification US pdf 78 KB
- FLUXUS SIL F8 Technical Specification DE pdf 74 KB
- FLUXUS SIL F8 Technical Specification EN pdf 74 KB
- FLUXUS SIL F8 Technical Specification ES pdf 74 KB
- FLUXUS SIL F8 Technical Specification FR pdf 75 KB
- FLUXUS SIL F8 Technical Specification NL pdf 73 KB
- FLUXUS SIL F8 Technical Specification RU pdf 322 KB
