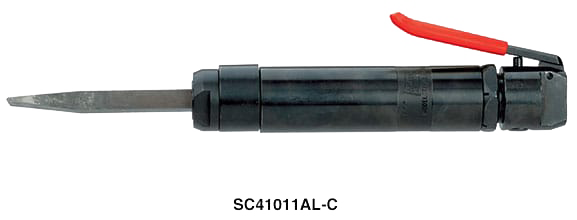

SC4 series scalers accept notched, square shank chisels and accessories. Each can be quickly converted between chisel and needle styles.
Features
  • Lever and Push/Pull Start
  • Quick Release Retainer
  • Adjustable Needle Length

Specifications

Stroke

  • 1.1" (28 mm)

Bore

  • 1" (25 mm)

Blows Per Minute

  • 4,600

Length

  • 10.5" to 16.8" (263 to 420 mm)

Air Inlet Size

  • 1/4" NPT

Air Consumption

  • 12 scfm (6 l/s)
