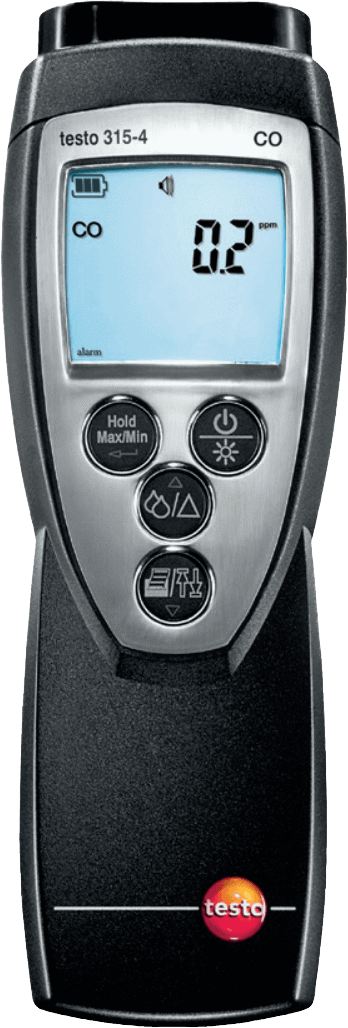

Testo 315-4 - CO Measuring Instrument
Brand: TestoThe testo 315-4 is a convenient, precise and robust measuring instrument for recording ambient CO values.
It identifies even the slightest concentrations of the highly toxic gas.
This allows you to safely judge whether, e.g. ambient air-dependent heating systems can be operated without danger.
Features- TÜV-tested according to EN 50543
- Electrochemical CO sensor for reliable and highly precise measurement results
- Optical and audible alarm when limit values are exceeded (freely adjustable limit values)
- Printout of measurement data possible directly on site
Specifications
Brand
Storage Temperature
- -4° F to 140° F / -20° C to +60° C
Operating Temperature
- 32° F to 104° F / 0° C to +40° C
Operating Humidity
- 0 to 95 %RH
Protection Class
- IP40 according to EN 60529
Power Supply
- Lithium-polymer Battery Pack
Battery Life
- 50 h measuring time (at +20° C / +68° F) / Mains operation possible
Battery Charging
- In the instrument via mains unit
Interface
- IRDA Interface
Approval
- In accordance with EN 50543
EC Directive
- 2014/30/EU
Dimensions
- 190 x 65 x 40 mm
Humidity Module
- Measuring Range: 5 to 95 %RH
- Accuracy: ± 2.5 %rH (5 to +95 %rH)
- Resolution: 0.1 %rH
Ambient CO
- Measuring Range: 0 to 100 ppm
- Accuracy: ± 3 ppm (0 to 20 ppm) / ± 5 ppm (> 20 ppm)
- Resolution: 0.5 ppm
Temperature
- Measuring Range: 14° F to 140° F / -10° C to +60° C
- Accuracy: ± 32..9° F (± 1 Digit) / ± 0.5° C (± 1 Digit)
- Resolution: 0.1° F / 0.1° C
