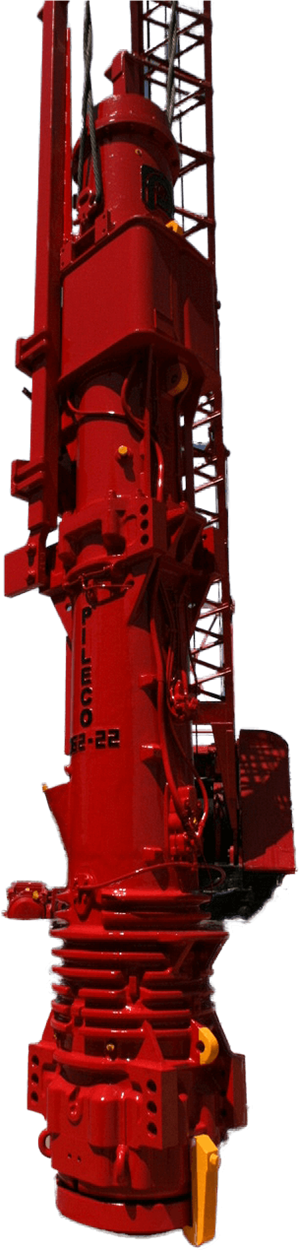

D62-22 Diesel Hammer
Brand: PACO Ventures, LLC
Specifications
Brand
Pump Setting 1
- 79,200 ft-lb (107 kNm)
Pump Setting 2
- 107,490 ft-lb (146 kNm)
Pump Setting 3
- 134,160 ft-lb (182 kNm)
Pump Setting 4
- 161,640 ft-lb (219 kNm)
Blows Per Minute
- 35 - 50
Related Piston Stroke
- 5.3 - 10.5 ft (1.6 - 3.2 m)
Fuel Consumption at Full Load
- 5.28 gal/hr (20 L/hr)
Oil Consumption
- .53 gal/hr (2 L/hr)
Hammer
- 27,077 lb (12,282 kg)
Piston
- 13,670 lb (6,200 kg)
Hammer w/ Standard Guiding
- 29,300 lb (13,290 kg)
Fuel Tank
- 26 gal (98 liters)
Oil Tank
- 8 gal (31 liters)

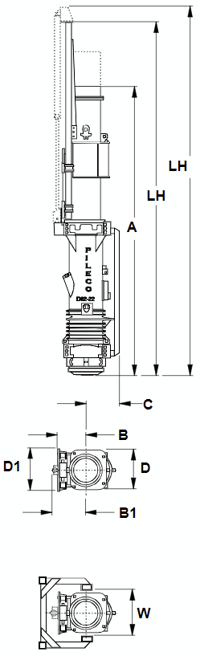

A - Length
- 23 ft (6,890 mm)
LH - Length, Standard
- 25 ft (7,560 mm)
LH - Length with Hydraulic Start
- 26 ft (7,864 mm)
B - Center to Trip
- 20 in (508 mm)
B1 - Center to Trip with Cylinder
- 27 in (686 mm)
C - Center to Pump Guard
- 26 in (648 mm)
D - Width of Hammer
- 33 inches (825 mm)
D1 - Width of Trip
- 36 in (902 mm)
W - Minimum Lead Width
- 32 in (812 mm)
