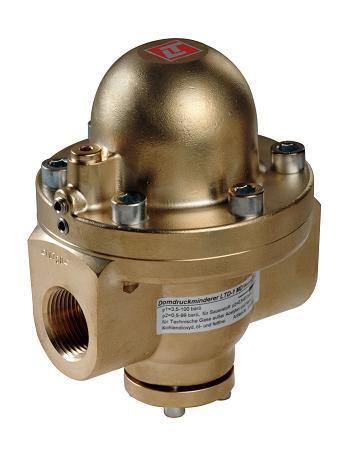

Dome Loaded Pressure Regulator LTD-1 Brass
Brand: LT GasetechnikDome loaded pressure regulator LTD-1, brass
- For almost all technical gases, air and liquids
- Performance: 10 ... 2,500 m³/h
- Inlet 0.5 ... 100 bar, Outlet 0.1 ... 70 bar
- Maximum pressure
· MD: Inlet: O2 40 bar, other 100 bar outlet: O2: 0.5 ... 39 bar, other 0.5 ... 99 bar
· ND: Inlet: 25 bar outlet: 0.1 ... 24 bar
- Seal material:
· Viton: -20°C .. 100 °C for O2, and all gases except Acetylene und CO2
· EPDM: -40°C .. 130 °C for CO2 und all neutral gases (not for O2)
- Weight: 5,8 kg (brass)
- Fitting length 127 mm
- Connection inlet and outlet: Internal thread G1“RH
- Safety function: closed by spring force and “positive tightening”
On inquiring please specify gas type, max. inlet pressure, max. outlet pressure
Features- Does not show any wobbling, even with persistent inlet pressure fluctuation
- Pressure control is independent from inlet pressure
