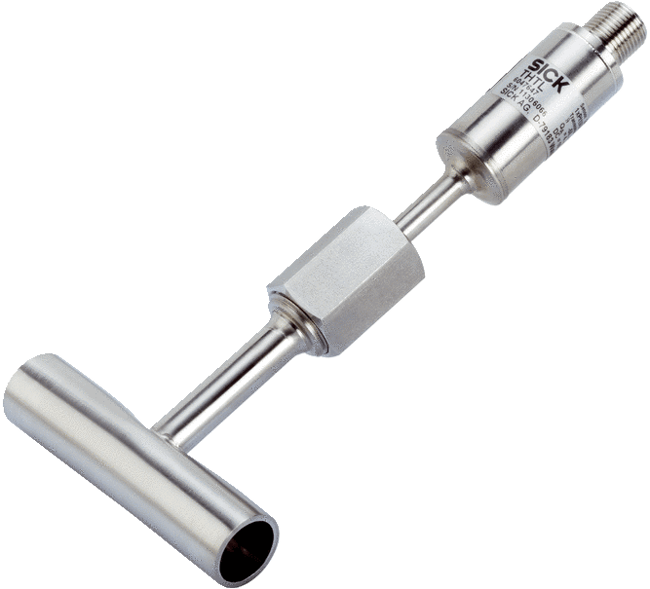

THTE Temperature Sensor
Brand: Sick AG
The THTE temperature sensor is a hygienically-graded Pt100 resistance thermometer for applications in the food and beverage, pharmaceutical, cosmetics, and biotechnology industries.
With the help of a thermowell that protrudes into the process, the sensor can be exchanged “dry“. That means that the vessel remains closed and potential hygienic risks are minimized.
The thermowell is available in multiple insertion lengths and is installed at the vessel by common hygienically-graded process connections.
High-grade stainless steel and a gap- and crevice-free design enable safe and clean processing.
The THTE is well suited for CIP and SIP processes.
This enables safe hygienic operation in conjunction with optimized equipment availability.
Besides its direct electrical connection to the Pt100 element, the THTE is available with an integrated transmitter with 4 mA ... 20 mA output signal.
Features- The sensor can be exchanged without opening the process, providing high equipment availability and minimizing hygienic risks
- Safe hygienic operation: Wetted parts are made from high-grade stainless steel, hygienically-graded surface finish, and a gap- and crevice-free design
- Rugged: Connection housing is easy to clean and splash water proof
- Quick and safe installation
- Very good long-term stability, accuracy and linearity
- Quick response time
- Optimal solutions for individual requirements due to versatile configurability
1 - 12 of 504 Part Numbers
THTE-1AA510256MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 20 with Grooved Cap Nut
- Installation Length / Diameter - 25 mm / 6 mm
THTE-1AA510506MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 20 with Grooved Cap Nut
- Installation Length / Diameter - 50 mm / 6 mm
THTE-1AA510756MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 20 with Grooved Cap Nut
- Installation Length / Diameter - 75 mm / 6 mm
THTE-1AA511006MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 20 with Grooved Cap Nut
- Installation Length / Diameter - 100 mm / 6 mm
THTE-1AA511506MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 20 with Grooved Cap Nut
- Installation Length / Diameter - 150 mm / 6 mm
THTE-1AA512006MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 20 with Grooved Cap Nut
- Installation Length / Diameter - 200 mm / 6 mm
THTE-1AA51MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 20 with Grooved Cap Nut
THTE-1AA520256MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 25 with Grooved Cap Nut
- Installation Length / Diameter - 25 mm / 6 mm
THTE-1AA520506MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 25 with Grooved Cap Nut
- Installation Length / Diameter - 50 mm / 6 mm
THTE-1AA520756MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 25 with Grooved Cap Nut
- Installation Length / Diameter - 75 mm / 6 mm
THTE-1AA521006MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 25 with Grooved Cap Nut
- Installation Length / Diameter - 100 mm / 6 mm
THTE-1AA521506MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling (DIN 11851) DN 25 with Grooved Cap Nut
- Installation Length / Diameter - 150 mm / 6 mm
1 - 12 of 504 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
Measuring Range
- -50° to 150° C
- -50° to 250° C
Accuracy
- Sensor Element: Class A According to IEC 60751
- Opt. Measuring Transducer: ± 0.25 K
Element Connection
- M12 Round Connector x 1, 4-Pin
Output Signal
- Pt100, 4-Wire
- 4-20 mA, 2-ire
